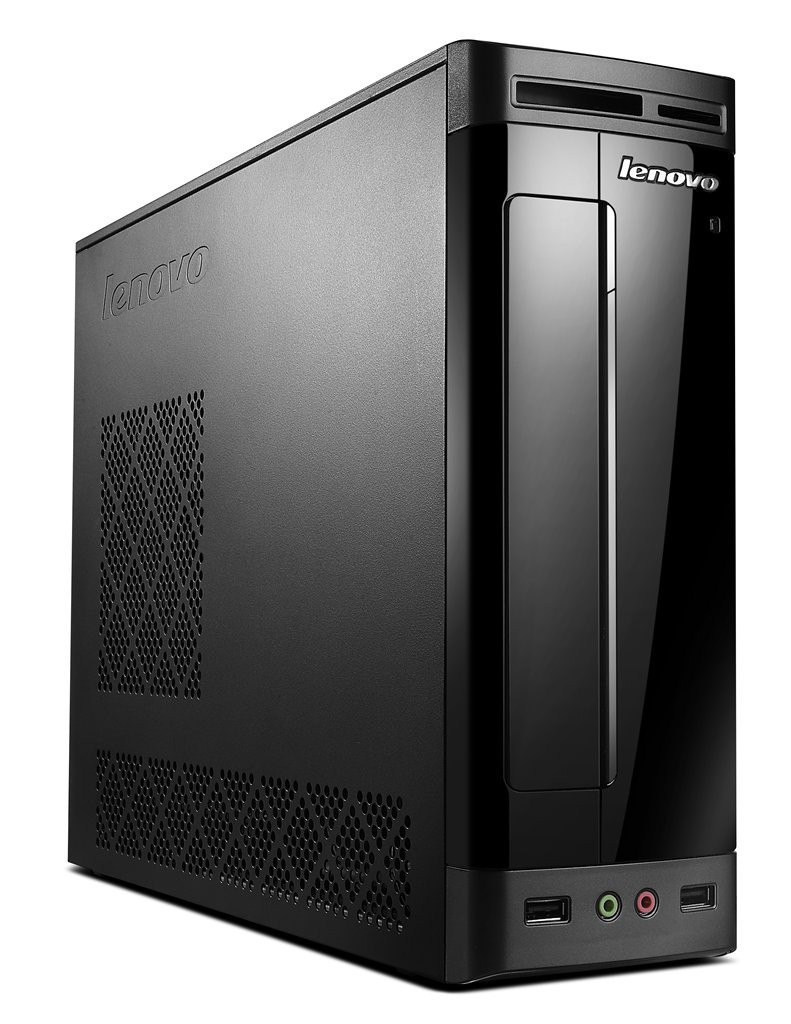

Lenovo Essential H330 Intel® Pentium® G620

3 GB DDR3-SDRAM 500 GB Windows 7 Home Premium SFF PC Black, Silver

Model H330Part no. 77801NUEAN 886843400647

120 specifications

ProcessorIntel® Pentium®
Memory3 GB
Storage500 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 3 GB
Storage: 500 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: Lenovo
Category: PCs/Workstations
Model: H330
Part numbers: 77801NU, 77801PU, 57303737, 57303738, 57302028, 57-129498 +3 more
EAN / UPC: 886843400647, 886843400753
Also known as: Lenovo Essential H330 Intel® Pentium® G620 3 GB DDR3-SDRAM 500 GB Windows 7 Home Premium SFF PC Black, Silver

Specifications

120 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G620
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	1066 MHz
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	26
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Memory

Specification	Value
Internal memory	3 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi DL
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Optical drive

Specification	Value
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Internal modem	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	180 W

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53480
Processor code	SR05R
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	100 mm
Depth	400 mm
Height	293 mm
Weight	9.75 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Multimedia

Specification	Value
Built-in camera	No
