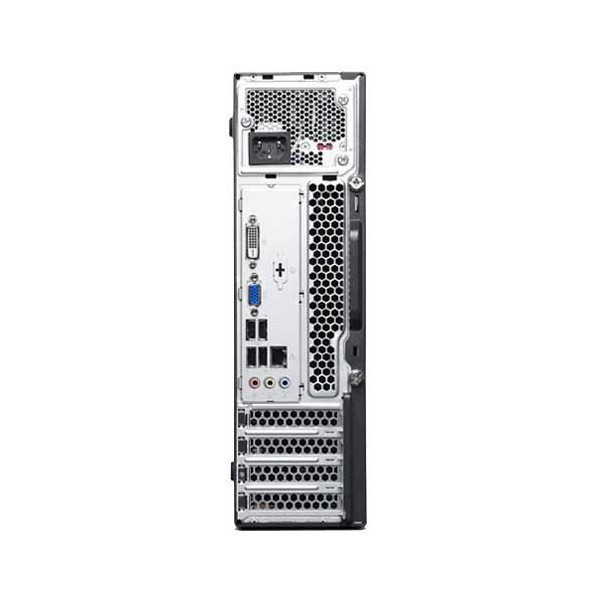

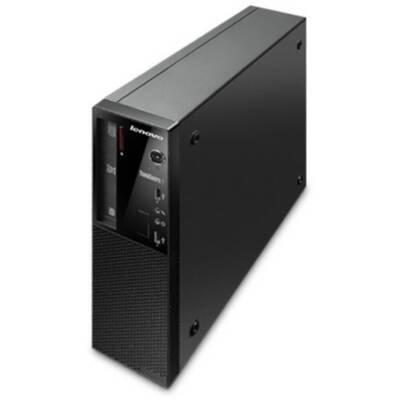

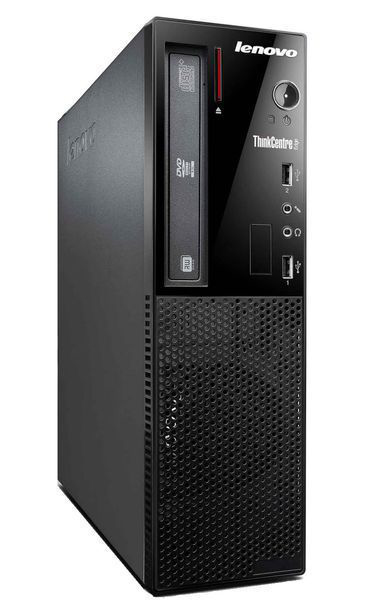

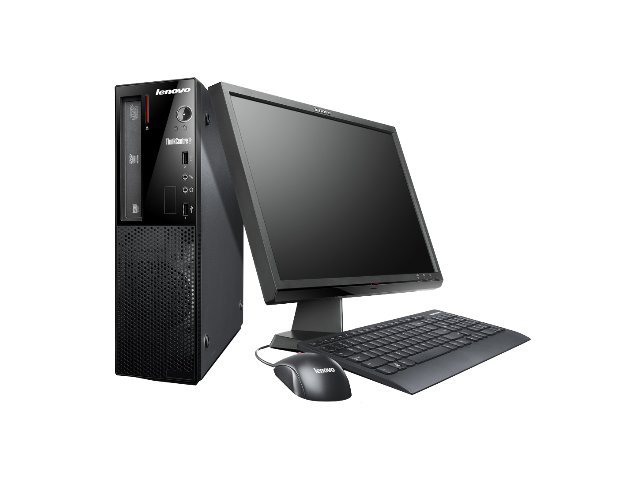

Edge 71 SFF + Thinkvision LS1922
Model Edge 71 SFF + Thinkvision LS1922Part no. SGGN9UK+T80AHUK
109 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel Pentium G
- Memory2 GB
- Storage250 GB
- GraphicsNot available
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Pentium G
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- Edge 71 SFF + Thinkvision LS1922
- Part number
- SGGN9UK+T80AHUK
- Also known as
- Lenovo ThinkCentre Edge 71 SFF + Thinkvision LS1922 Intel Pentium G G630 2 GB DDR3-SDRAM 250 GB Windows 7 Professional PC Black
Specifications
109 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium G |
| Processor model | G630 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.7 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| System bus rate | 5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium G600 Series for Desktop |
| Processor codename | Sandy Bridge |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 69.1 °C |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 27 |
| Stepping | Q0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| Memory bandwidth supported by processor (max) | 17 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 1333 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD±RW |
| Number of HDDs installed | 1 |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H61 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Number of 5.25" bays | 1 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53483 |
| Processor code | SR05S |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 97 mm |
| Depth | 368.1 mm |
| Height | 333.6 mm |
| Weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
