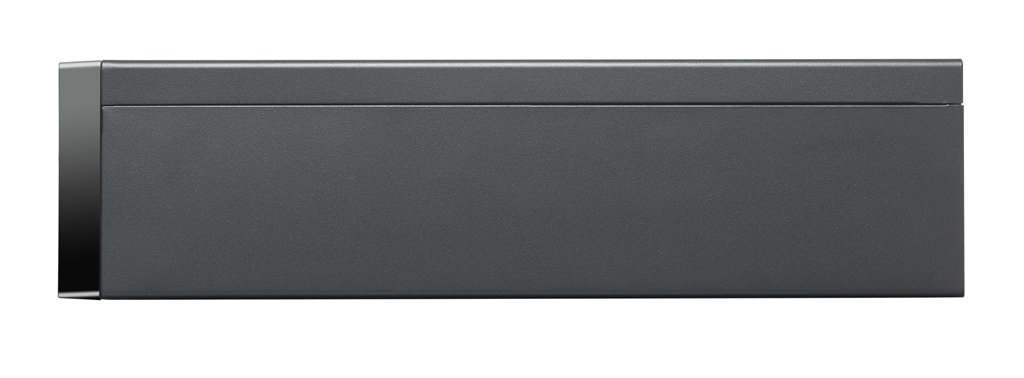

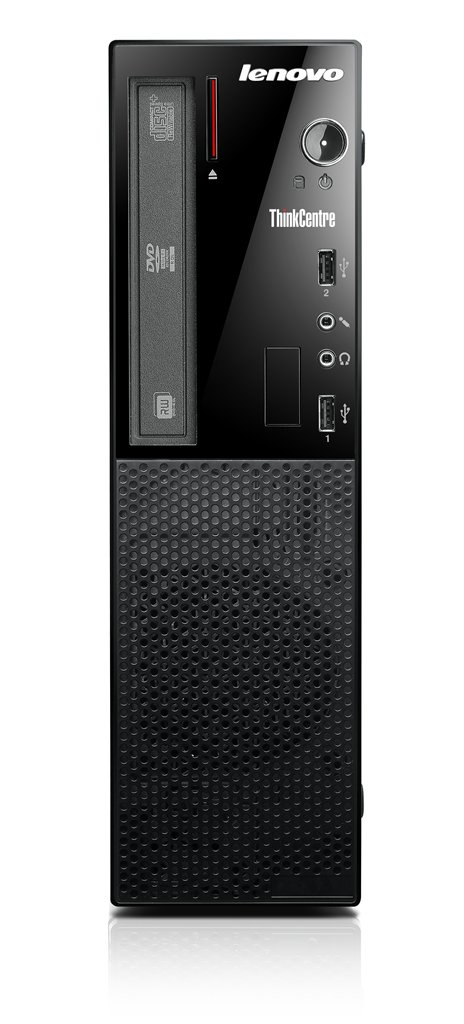

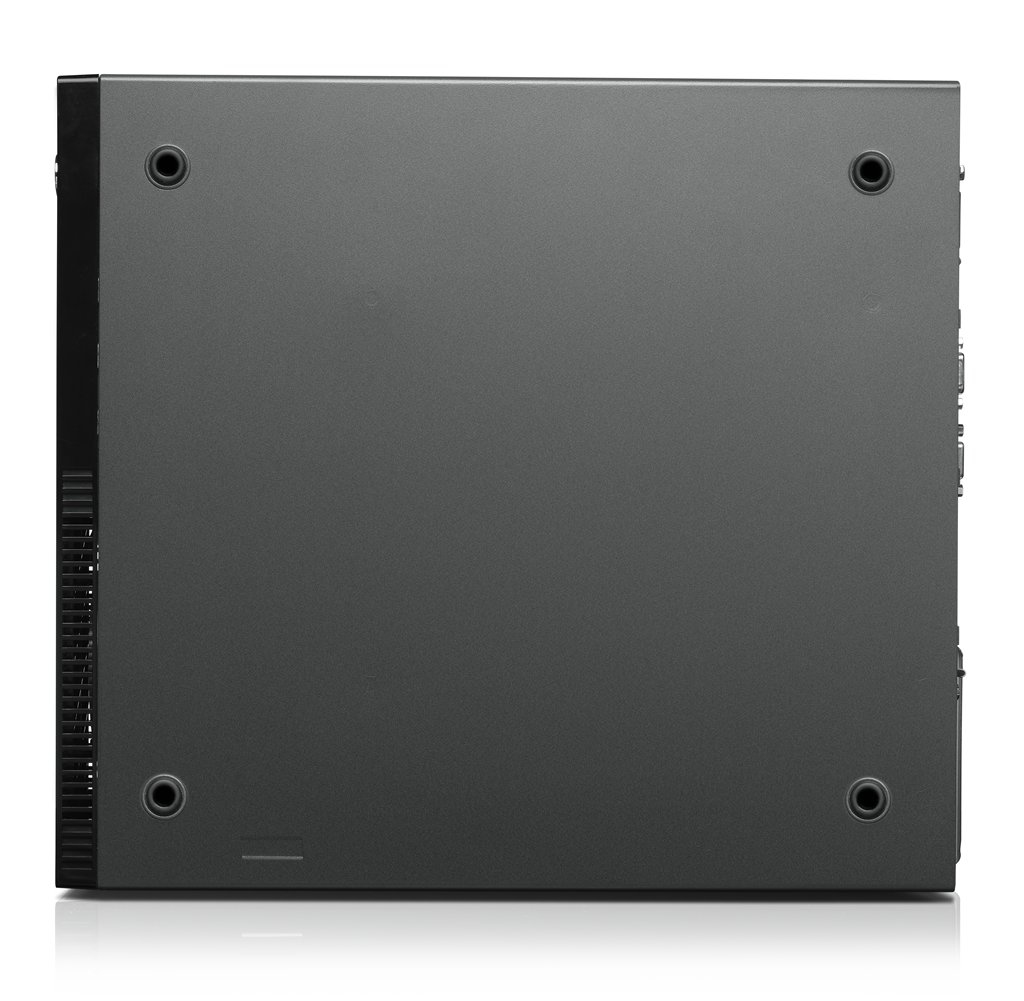

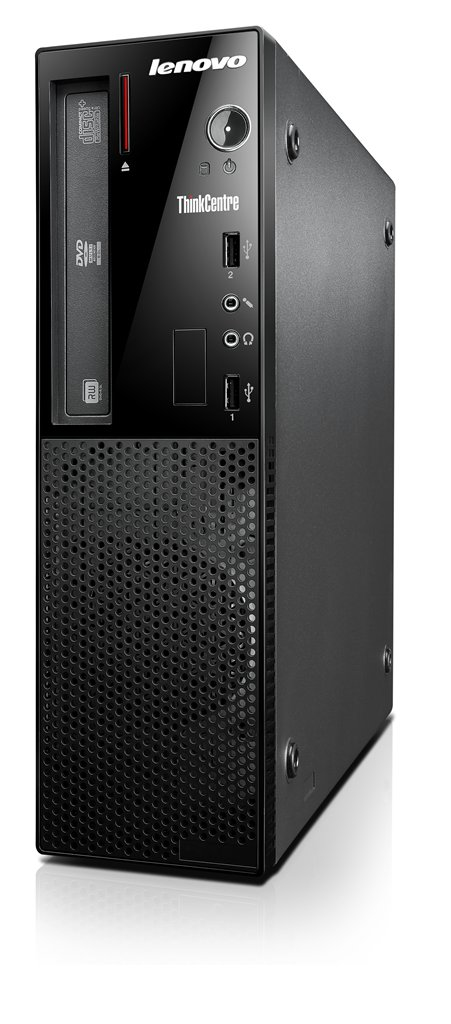

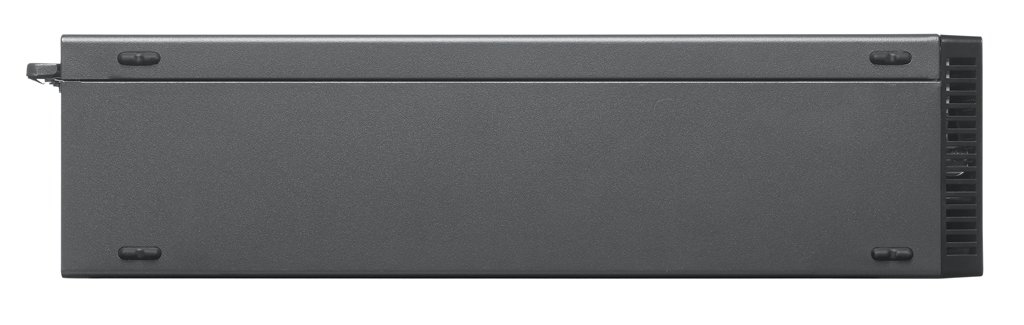

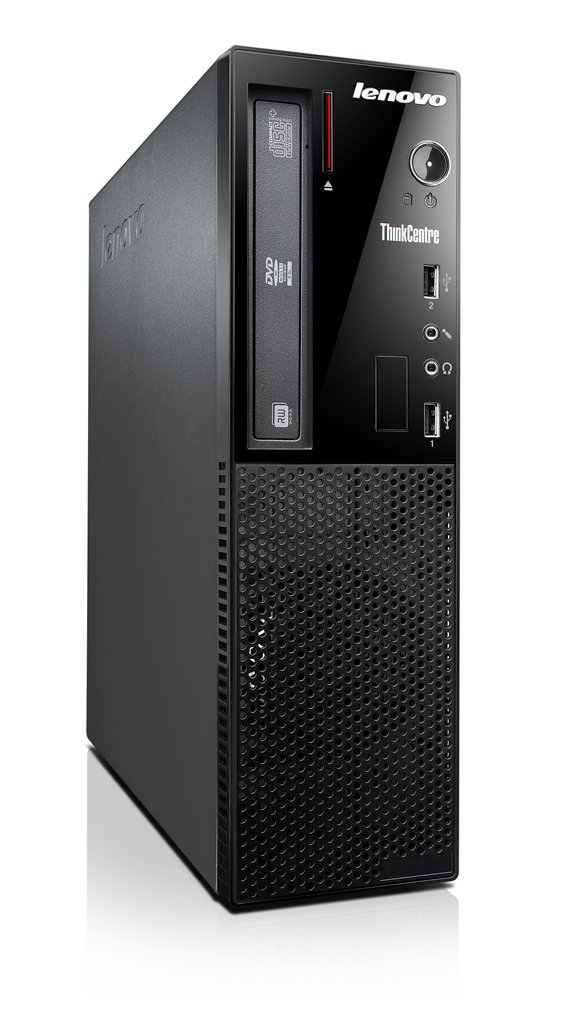

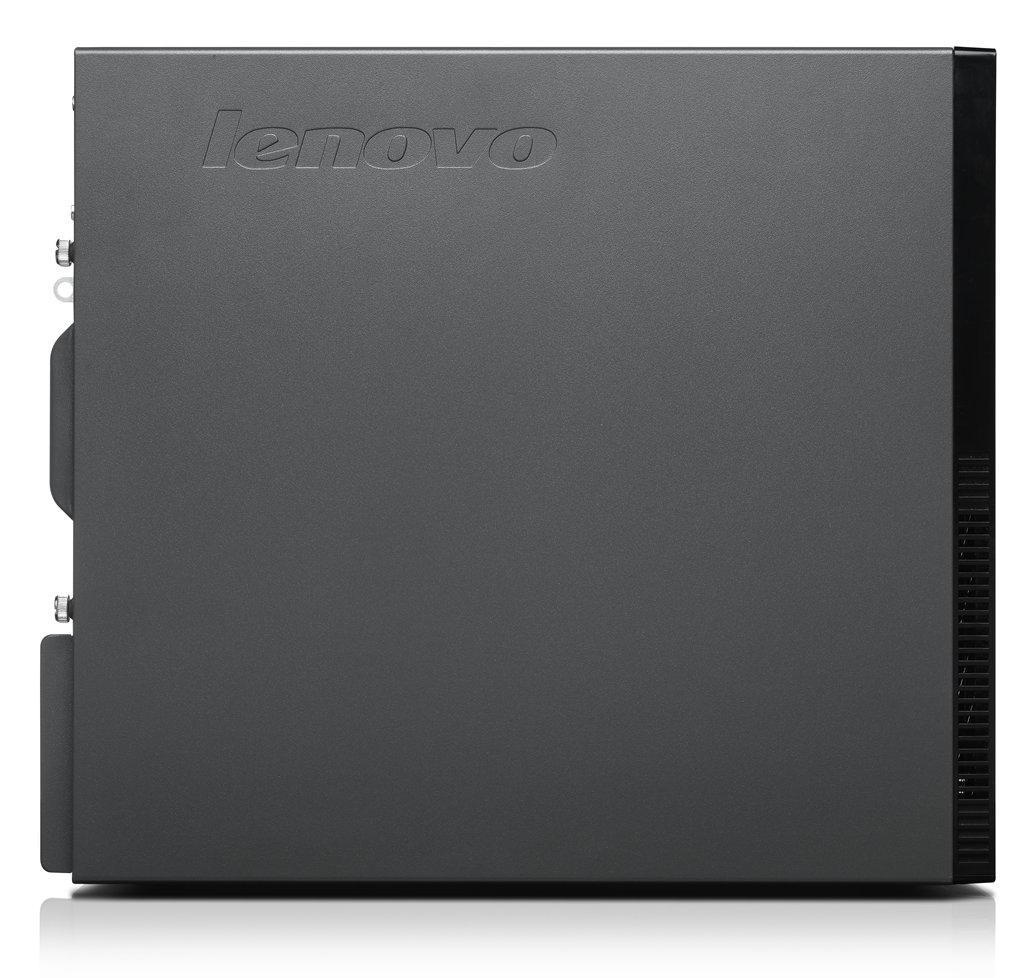

E73 + ThinkVision E1922 (18.5")
Model E73 + ThinkVision E1922 (18.5")Part no. 10AW008DSP+60B8AAT6EU
161 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i7
- Memory4 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i7
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- E73 + ThinkVision E1922 (18.5")
- Part numbers
- 10AW008DSP+60B8AAT6EU, 10AW008FSP+60B8AAT6EU
- Also known as
- Lenovo ThinkCentre E73 + ThinkVision E1922 (18.5") Intel® Core™ i7 i7-4770S 4 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional SFF PC Black
Specifications
161 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4770S |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.1 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4700 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71.35 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x412 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H81 |
| Password protection | Yes |
| Password protection type | HDD, Power on |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |

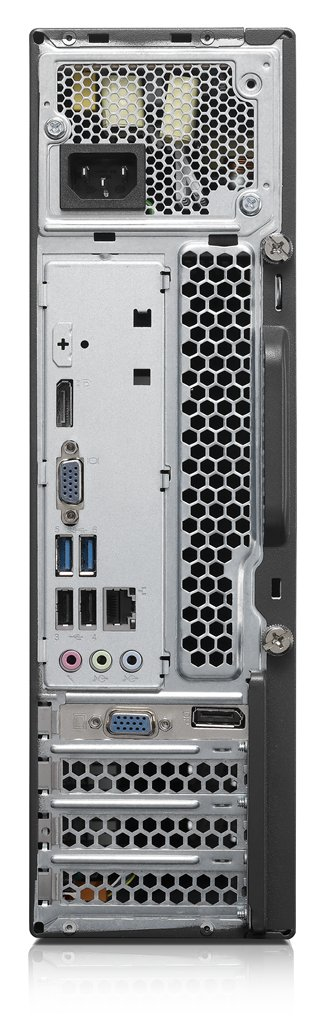

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 240 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8.1 Pro |
| Drivers included | Yes |

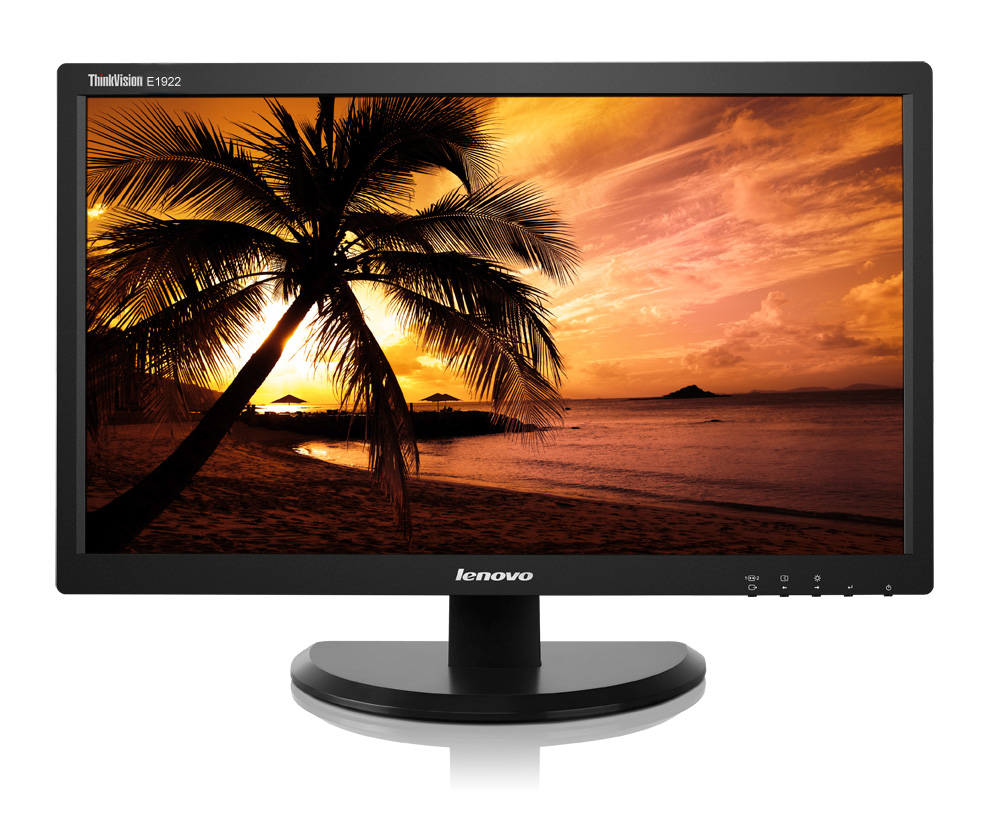

Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 47 cm (18.5") |
| Display type | LED |
| Display resolution | 1366 x 768 pixels |
| Panel type | TN |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 75124 |
| Processor code | SR14H |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 336 mm |
| Depth | 382 mm |
| Height | 101 mm |
| Weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | GREENGUARD, ErP Lot 3 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
