Lenovo E73 + 23" LED 60CFGAT1EU

Model E73 + 23" LED 60CFGAT1EUPart no. 10DU0005FR+60CFGAT1EU

169 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Lenovo
Category: PCs/Workstations
Model: E73 + 23" LED 60CFGAT1EU
Part number: 10DU0005FR+60CFGAT1EU
Also known as: Lenovo ThinkCentre E73 + 23" LED 60CFGAT1EU Intel® Core™ i5 i5-4460S 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional SFF PC Black

Specifications

169 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4460S
Processor cores	4
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.9 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i5-4400 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	65 W
Tcase	71.35 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.5 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	2.5"
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	412
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H81
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	180 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro
Trial software	Microsoft Office

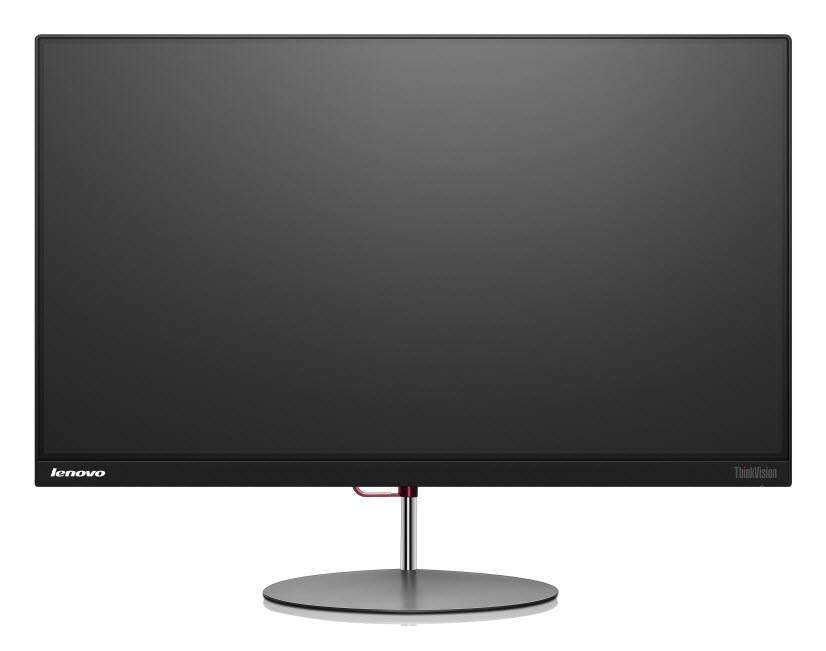

Display

Specification	Value
Display included	Yes
Display diagonal	60.5 cm (23.8")
Display type	LED
Full HD	Yes
Display resolution	1920 x 1080 pixels
Panel type	AH-IPS
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	80818
Processor code	SR1QQ
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC662
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	336 mm
Depth	382 mm
Height	101 mm
Weight	6 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
