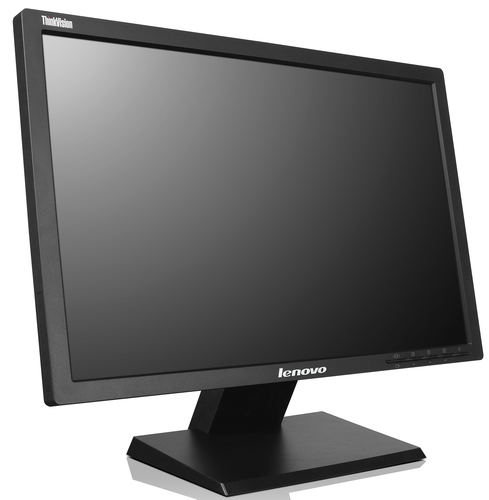

E73 + 19.5" LED ThinkVision LT2013s

Model E73 + 19.5" LED ThinkVision LT2013sPart no. 10AU003FSP+60ABAAT1EU

145 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: E73 + 19.5" LED ThinkVision LT2013s
Part numbers: 10AU003FSP+60ABAAT1EU, 10AS0030SP+60ABAAT1EU, 10AW00A7SP+60ABAAT1EU, 10AW00A8SP+60ABAAT1EU, 10AW008PSP+60ABAAT1EU
Also known as: Lenovo ThinkCentre E73 + 19.5" LED ThinkVision LT2013s Intel® Core™ i3 i3-4130 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional SFF PC Black

145 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4130
Processor cores	2
Processor threads	4
Processor frequency	3.4 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI2
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	65, 54
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Serial ports quantity	1
Parallel ports quantity	1

Specification	Value
Power supply	180 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro
Drivers included	Yes
Trial software	Microsoft Office

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77480
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Conflict-Free processor	Yes
