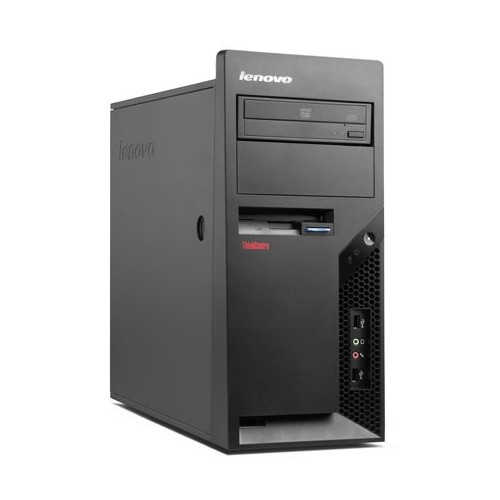

ThinkCentre A57e Intel Atom® 230
1 GB DDR2-SDRAM 160 GB Windows Vista Business Desktop PC Black
Model A57ePart no. SIA72FR
114 specifications
- ProcessorIntel Atom®
- Memory1 GB
- Storage160 GB
- GraphicsNot available
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows Vista Business
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- A57e
- Part number
- SIA72FR
- Also known as
- Lenovo ThinkCentre A57e Intel Atom® 230 1 GB DDR2-SDRAM 160 GB Windows Vista Business Desktop PC Black
Specifications
114 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | 230 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom 200 Series |
| Processor codename | Diamondville |
| Thermal Design Power (TDP) | 4 W |
| Tcase | 85.2 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 437 |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| Number of HDDs installed | 1 |
| HDD capacity | 160 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® GMA |
| On-board graphics card model | Intel® GMA 950 |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® 945G |
| Motherboard southbridge | Intel ICH7 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Number of 5.25" bays | 2 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Optional operating system supplied | Windows XP Professional |
| Compatible operating systems | Windows Vista Business 32bit Windows Vista Home Basic 32bit Windows Vista Starter 32bit Windows XP Pro |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35635 |
| Processor code | SLB6Z |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 440 mm |
| Height | 402 mm |
| Weight | 8.92 kg |
| Dimensions (WxDxH) | 175 x 440 x 402 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
