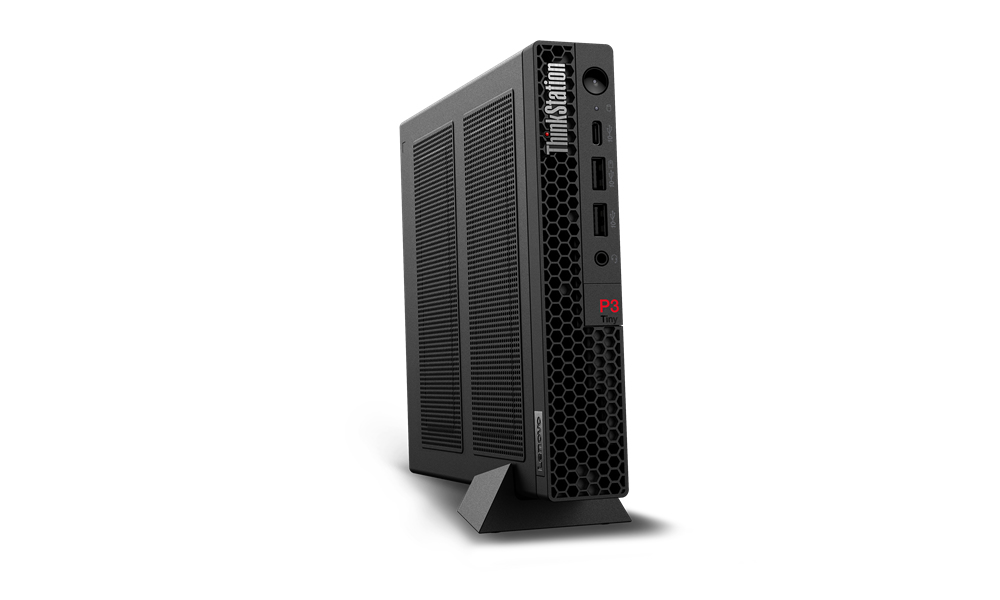

ThinkStation 30H0001NAX workstation Intel® Core™ i9 i9-13900T
32 GB DDR5-SDRAM 1 TB SSD NVIDIA T1000 Windows 11 Pro Mini PC Black
Model 30H0001NAXEAN 196804534435
111 specifications
- ProcessorIntel® Core™ i9
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA T1000
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i9
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA T1000
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- 30H0001NAX
- Part number
- 30H0001NAX
- EAN / UPC
- 196804534435
- Also known as
- Lenovo ThinkStation 30H0001NAX workstation Intel® Core™ i9 i9-13900T 32 GB DDR5-SDRAM 1 TB SSD NVIDIA T1000 Windows 11 Pro Mini PC Black
Specifications
111 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor model | i9-13900T |
| Processor cores | 24 |
| Processor threads | 32 |
| Processor boost frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.9 GHz |
| Performance-core base frequency | 1.1 GHz |
| Efficient-core base frequency | 0.8 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 106 W |
| Processor base power | 35 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA T1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel Q670 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-LM |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

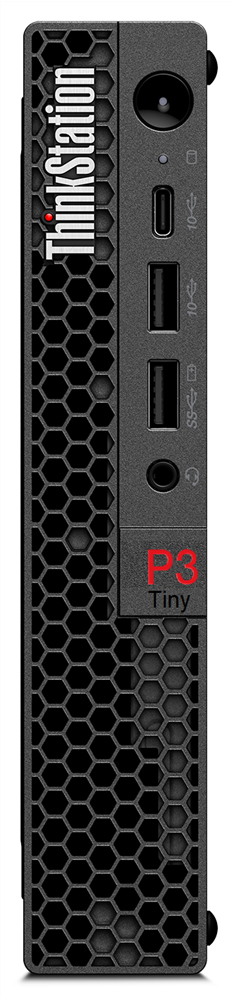

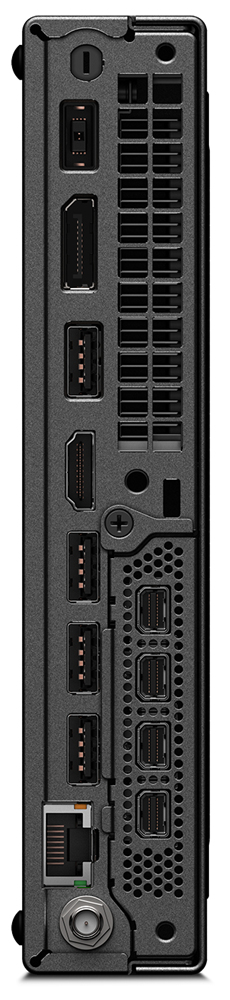

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 230 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |

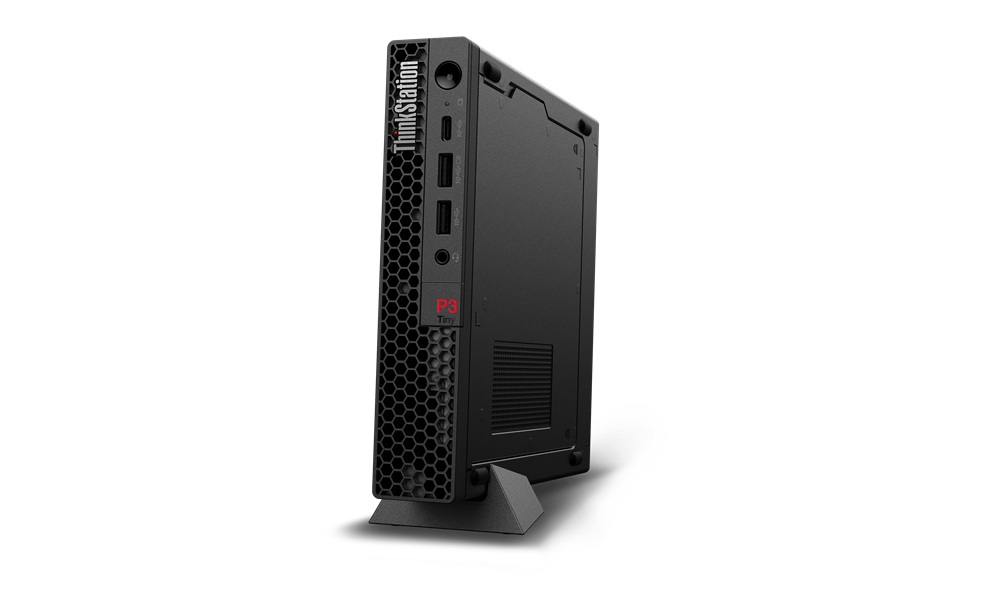

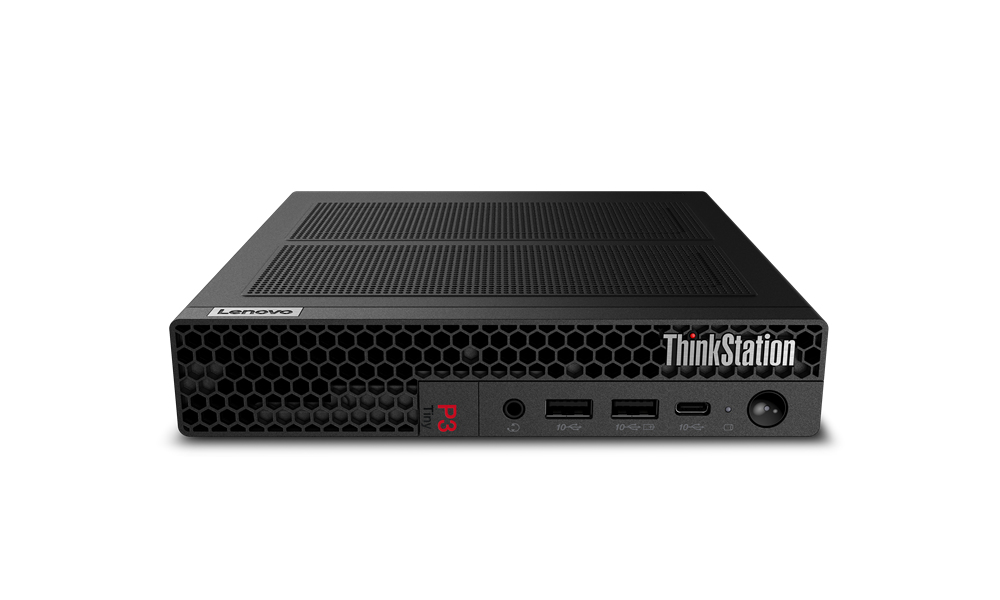

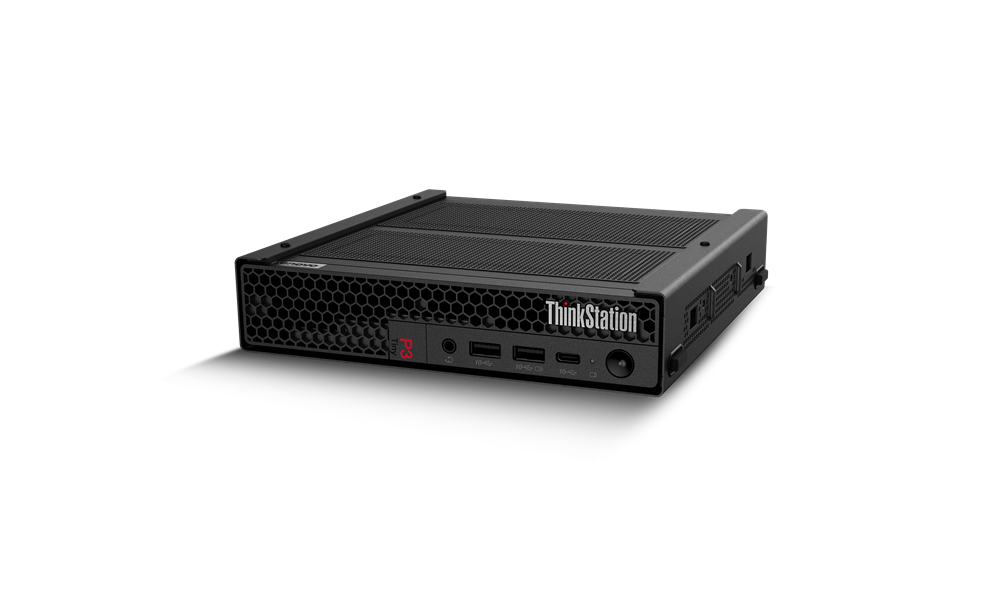

Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | Arabic, English |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC256-VB |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 37 mm |
| Weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EPEAT Gold Registered ENERGY STAR 8.0 ErP Lot 3 TCO Certified 9.0 RoHS compliant MIL-STD-810H |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO, EPEAT Gold |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
