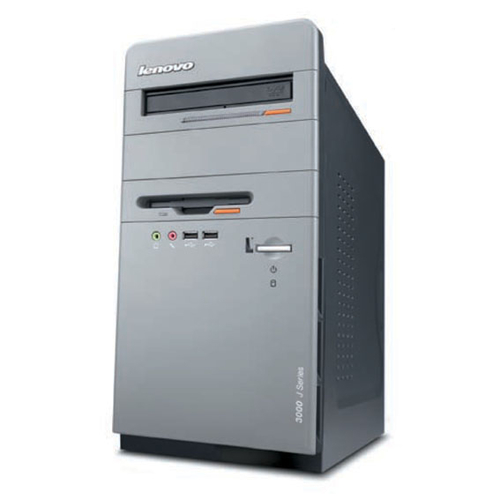

Lenovo 3000 J100 Intel Pentium 4 630

Model 3000 J100 Intel Pentium 4 630Part no. PPCD1BD

90 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: 3000 J100 Intel Pentium 4 630
Part numbers: PPCD1BD, PPCD1BF
Also known as: Lenovo 3000 J100 Intel Pentium 4 630 Intel® Pentium® 4 0.5 GB DDR-SDRAM 80 GB SiS 661FX Windows XP Home Edition PC

90 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® 4
Processor model	630
Processor cores	1
Processor threads	2
Processor frequency	3 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	90 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 4 600 Series supporting Hyper-Threading Technology
Processor codename	Prescott
Thermal Design Power (TDP)	84 W
Tcase	66.6 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	169 M
Processing Die size	135 mm²
CPU multiplier (bus/core ratio)	15
ECC supported by processor	No

Specification	Value
Discrete graphics card model	SiS 661FX
Video adapter, bus	AGP 8X

Specification	Value
Product type	PC

Specification	Value
Modem speed	56 Kbit/s
Networking features	Ethernet/Fast Ethernet

Specification	Value
Power supply	250 W

Specification	Value
Operating system installed	Windows XP Home Edition
Bundled software	Diskeeper Lite, Lenovo Care, Lenovo Password Manager, Norton Internet Security (OEM Edition) with 90 days of virus definition updates, PC Doctor diagnostics, ThinkVantage Rescue and Recovery, ThinkVantage System Update

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27478
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	AC-97

Specification	Value
Security features	-Boot sequence control -Power on password -Boot without keyboard or mouse -Configuration password -Diskette boot inhibit -Parallel port I/O control -Serial port I/O control
