3 07ACH7
Model 3 07ACH7Part no. 90U9004WFREAN 198153890224
78 specifications
- ProcessorAMD Ryzen™ 5
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- 3 07ACH7
- Part numbers
- 90U9004WFR, 90U9001SIX, 90U9001UIX, 90U9001TIX, 90U9001VIX, 90U9000MMW +13 more
- EAN / UPC
- 198153890224, 196802301800, 196802301848, 196802301831 +15 more
- Also known as
- Lenovo IdeaCentre 3 07ACH7 AMD Ryzen™ 5 5600H 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Home SFF PC Grey
Specifications
78 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5600H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.3 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC, MMC, MS PRO, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD SoC |
| Password protection | Yes |
| Password protection type | Power on, Supervisor, HDD |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

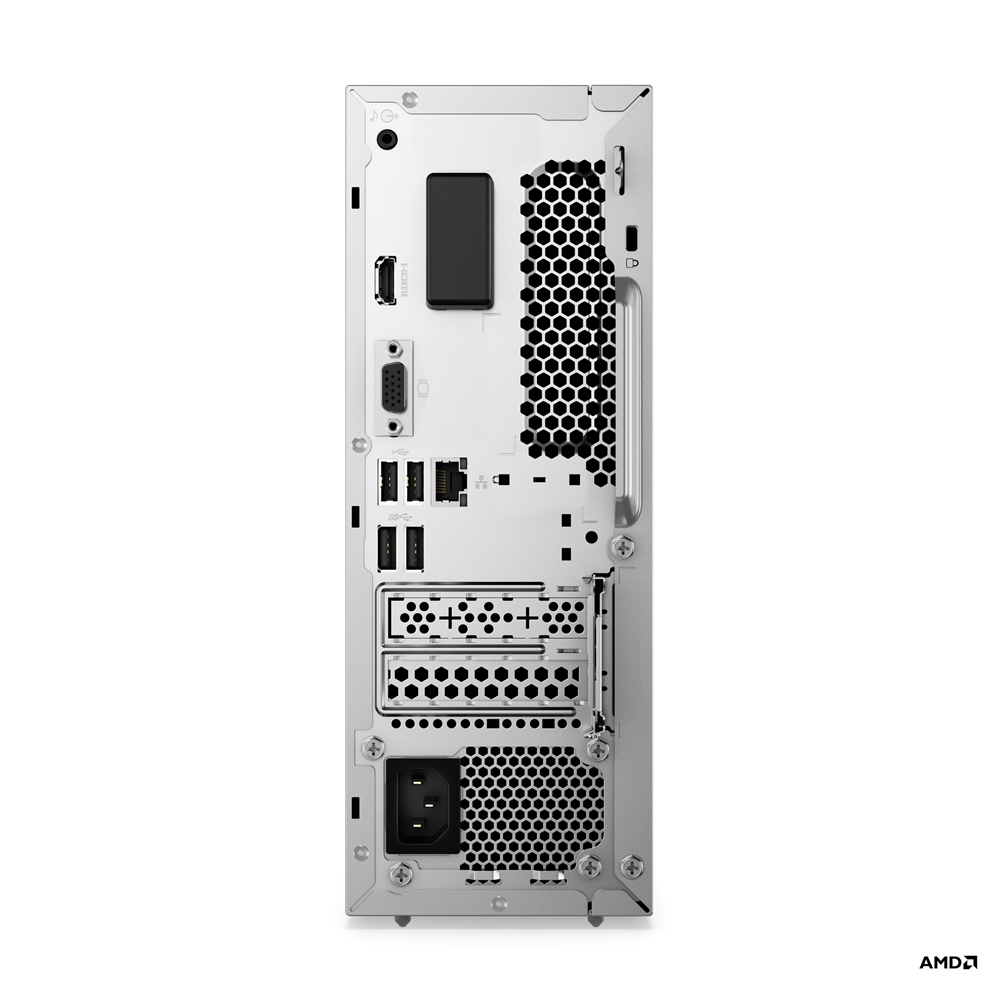

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Colour name | Mineral Grey |
| Volume | 7.4 L |
| Placement supported | Vertical |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 303.5 mm |
| Height | 274.8 mm |
| Weight | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
