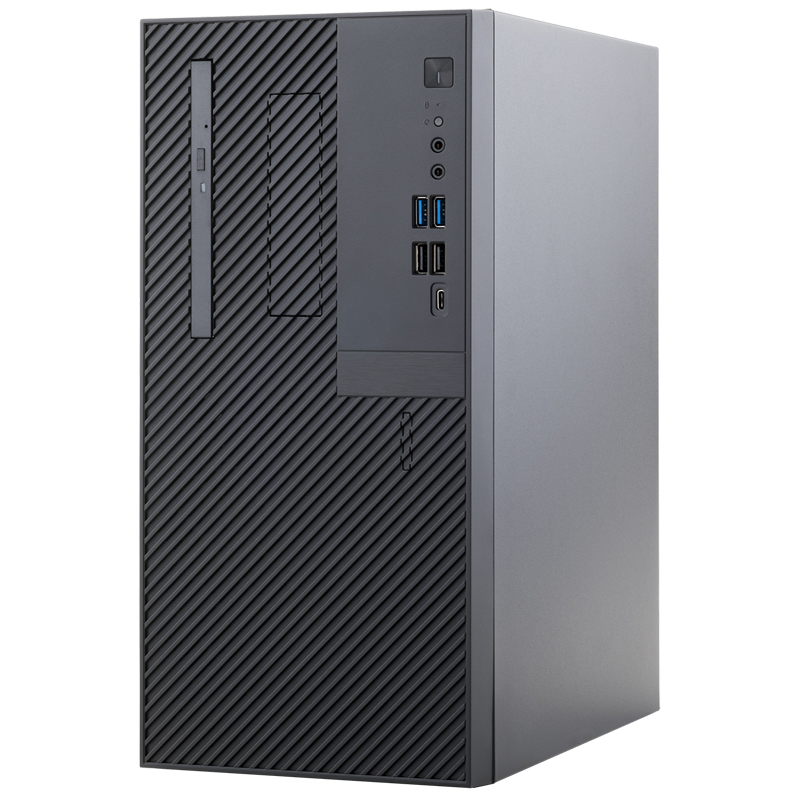

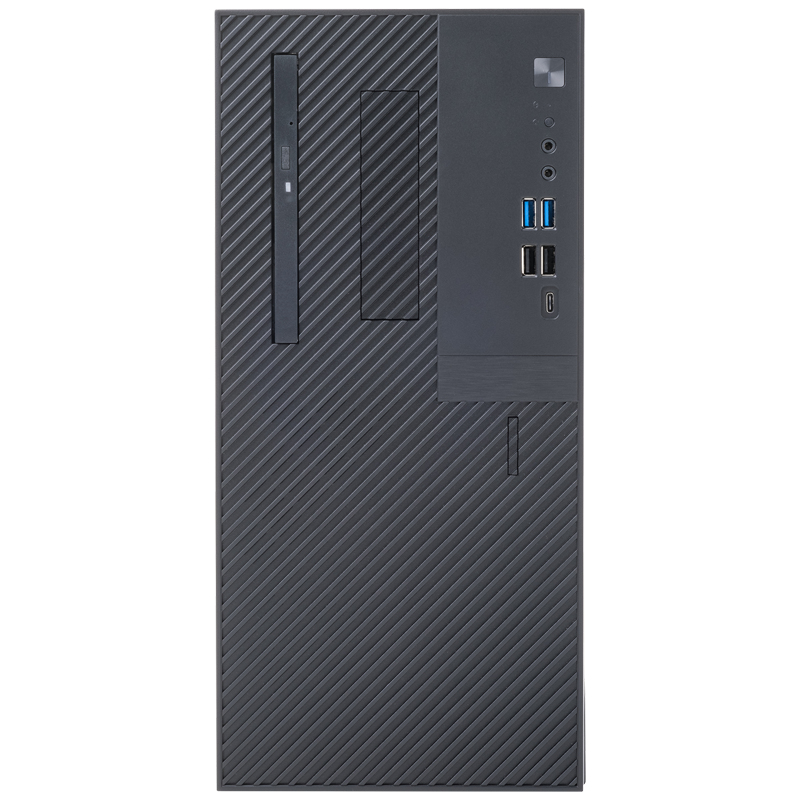

P4W Z15
Model P4W Z15Part no. ITPCODP4WZ152785EAN 8056157883395
63 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage1 TB
- GraphicsNot available
- TypePC
- OSNo
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Type
- PC
- OS
- No
- Brand
- itek
- Category
- PCs/Workstations
- Model
- P4W Z15
- Part numbers
- ITPCODP4WZ152785, ITPCODP4WZ152511, ITPCODP4WZ152585, ITPCODP4WZ152711, ITPCODP4WZ152715
- EAN / UPC
- 8056157883395, 8056157883388, 8056157883371, 8056157883418 +1 more
- Also known as
- itek P4W Z15 Intel® Core™ i5 i5-12400 16 GB DDR4-SDRAM 1 TB SSD SFF PC Black
Specifications
63 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12400 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 6 |
| Efficient cores | 0 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 2.5 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Number of processors installed | 1 |
| Maximum turbo power | 117 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 730 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | No |

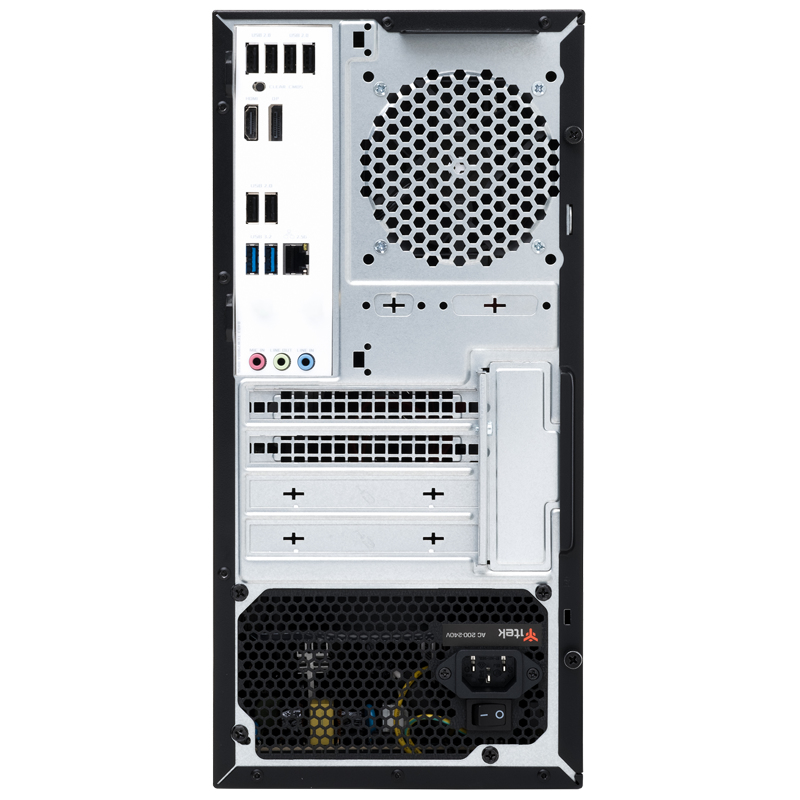

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 295 mm |
| Height | 353 mm |
