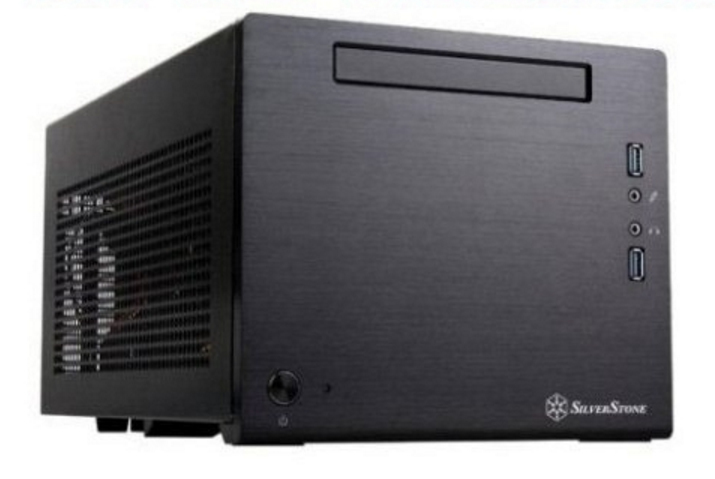

ISY WS VR-Base
Model WS VR-BasePart no. ISYWSVR-BASE-I771080
144 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage256 GB
- GraphicsNVIDIA® GeForce® GTX 1080
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 256 GB
- Graphics
- NVIDIA® GeForce® GTX 1080
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- WS VR-Base
- Part number
- ISYWSVR-BASE-I771080
- Also known as
- ISY WS VR-Base Intel® Core™ i7 i7-7700 32 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1080 Windows 10 Pro SFF Mini PC Black
Specifications
144 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7700 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Stepping | B0 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Intel® Optane™ Memory module installed | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1080 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5X |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Intel® HD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x5912 |
| On-board graphics card OpenGL version | 4.4 |
| CUDA | Yes |
| CUDA cores | 2560 |
| NVIDIA G-SYNC | Yes |
| NVIDIA GameWorks VR | Yes |
| Graphics card DVI-D ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Virtual Reality (VR) ready | Yes |
| Motherboard chipset | Intel® Z270 |
| Motherboard form factor | mini ITX |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Placement supported | Horizontal |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 97128 |
| Processor code | SR338 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
