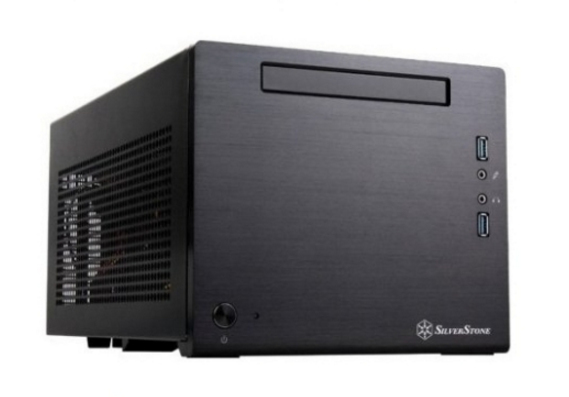

WS UltraPortable2

Model WS UltraPortable2Part no. ISYWSZ170I-GTX970EAN 8055681885738

133 specifications

ProcessorIntel® Core™ i7
Memory32 GB
Storage240 GB
GraphicsNVIDIA® Quadro® M6000
TypeWorkstation
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 240 GB
Graphics: NVIDIA® Quadro® M6000
Type: Workstation
OS: Windows 10 Pro

Brand: ISY
Category: PCs/Workstations
Model: WS UltraPortable2
Part numbers: ISYWSZ170I-GTX970, ISYWSZ170I-M6000-T, ISYWSZ170I-M5000-T, ISYWSZ170I-M4000-T, ISYWSZ170I-M2000-T, ISYWSZ170I-K620-T +2 more
EAN / UPC: 8055681885738, 8055681885714, 8055681885707, 8055681885691 +4 more
Also known as: ISY WS UltraPortable2 Intel® Core™ i7 i7-6700K 32 GB DDR4-SDRAM 240 GB SSD NVIDIA® Quadro® M6000 Windows 10 Pro Workstation Black

Specifications

133 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700K
Processor cores	4
Processor threads	8
Processor boost frequency	4.2 GHz
Processor frequency	4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI2
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	91 W
Tcase	64 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1600,2133 MHz
Memory bandwidth supported by processor (max)	34.2 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
ECC	No
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	240 GB
Optical drive type	DVD Super Multi
Storage media	SSD
Card reader integrated	No
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® M6000
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4
Graphics card	Quadro M6000
Graphics card family	NVIDIA
Graphics card memory type	GDDR5

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Z170
Motherboard form factor	mini ITX
Compatible processor series	Intel® Celeron®, Intel® Pentium®
BIOS type	AWARD
Trusted Platform Module (TPM)	Yes
Audio output channels	7.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	1
S/PDIF out port	Yes
DC-in jack	Yes
Number of SATA III connectors	4

Expansion slots

Specification	Value
PCI Express x16 slots	1

Power

Specification	Value
Power supply type	Internal power supply unit
Power supply	600 W

Design

Specification	Value
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Fast Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88195
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
