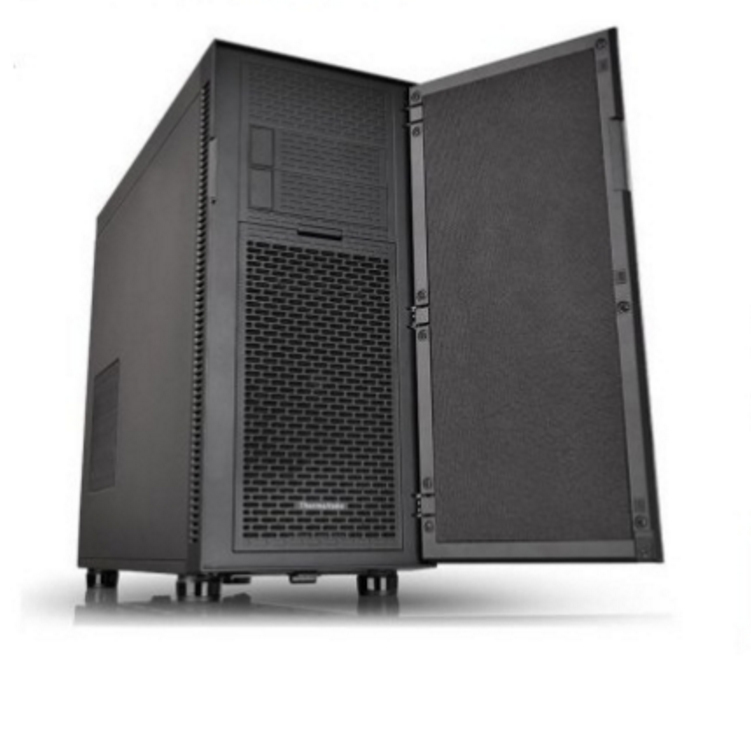

ISY W-S2600CWT-2697-5 Intel® Xeon® E5 v4 E5-2697V4

64 GB DDR4-SDRAM Windows 10 Midi Tower Workstation Black

Model W-S2600CWT-2697-5Part no. ISY-W-S2600CWT-2697-5EAN 8055681887206

93 specifications

Overview

Brand: ISY
Category: PCs/Workstations
Model: W-S2600CWT-2697-5
Part number: ISY-W-S2600CWT-2697-5
EAN / UPC: 8055681887206
Also known as: ISY W-S2600CWT-2697-5 Intel® Xeon® E5 v4 E5-2697V4 64 GB DDR4-SDRAM Windows 10 Midi Tower Workstation Black

93 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2697V4
Processor cores	18
Processor threads	36
Processor boost frequency	3.6 GHz
Processor frequency	2.3 GHz
Processor cache	45 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	9.6 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	145 W
Tcase	79 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	2
Processor socket	LGA 2011-v3
Stepping	B0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon®

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Microphone in	No
VGA (D-Sub) ports quantity	1
DVI port	No

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	91755
Processor code	SR2JV
Processor package size	45 x 52.5 mm
Scalability	2S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Conflict-Free processor	Yes

Specification	Value
Certification	CE
