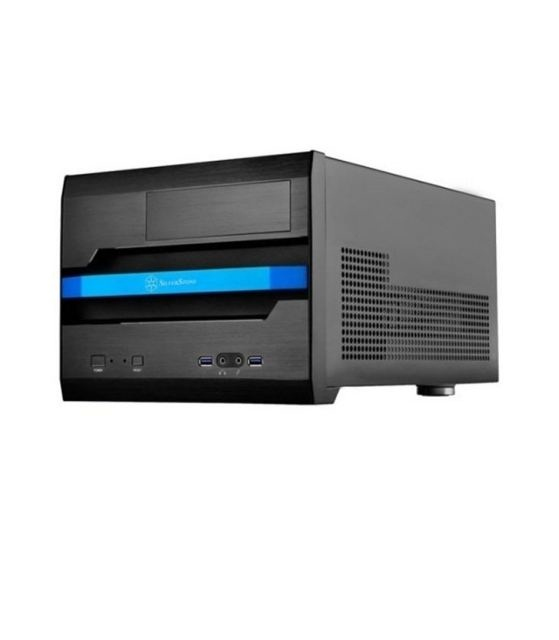

W-CUBS-X99M4-1650-5 workstation Intel® Xeon® E5 v4 E5-1650V4

32 GB DDR4-SDRAM 500 GB SSD NVIDIA® Quadro® M5000 Windows 10 Pro Black

Model W-CUBS-X99M4-1650-5EAN 8055681887572

107 specifications

Overview

Brand: ISY
Category: PCs/Workstations
Model: W-CUBS-X99M4-1650-5
Part number: W-CUBS-X99M4-1650-5
EAN / UPC: 8055681887572
Also known as: ISY W-CUBS-X99M4-1650-5 workstation Intel® Xeon® E5 v4 E5-1650V4 32 GB DDR4-SDRAM 500 GB SSD NVIDIA® Quadro® M5000 Windows 10 Pro Black

107 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-1650V4
Processor cores	6
Processor threads	12
Processor boost frequency	4 GHz
Processor frequency	3.6 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® M5000
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card model	Not available

Specification	Value
Product type	Workstation

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
eSATA ports quantity	1
Number of SATA III connectors	10

Specification	Value
Number of 3.5" bays	3
PCI Express x16 (Gen 3.x) slots	2

Specification	Value
Power supply	700 W

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Italian

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	92994
Processor code	SR2P7
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
