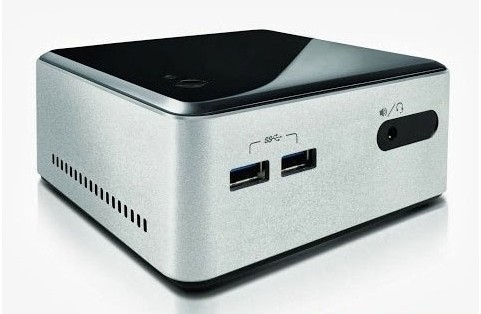

THEATRE 4H XXL

Model THEATRE 4H XXLPart no. ISYNUC4HI508240NOSTHEAN 8055681880986

143 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage1.24 TB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1.24 TB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: ISY
Category: PCs/Workstations
Model: THEATRE 4H XXL
Part number: ISYNUC4HI508240NOSTH
EAN / UPC: 8055681880986
Also known as: ISY THEATRE 4H XXL Intel® Core™ i5 i5-4250U 8 GB DDR3L-SDRAM 1.24 TB HDD+SSD Windows 8.1 Pro USFF Mini PC Black, Silver

Specifications

143 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4250U
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Processor codename	Haswell
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1168
Stepping	C0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1.24 TB
Optical drive type	No
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
Number of SSDs installed	1
SSD capacity	240 GB
SSD interface	mSATA

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5000
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0xA26

Performance

Specification	Value
Product type	Mini PC
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
HDMI ports quantity	0
HDMI version	1.4a
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Mini HDMI ports quantity	1
Mini DisplayPorts quantity	1
DC-in jack	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4

Expansion slots

Specification	Value
Mini PCI Express slots	2

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	USFF
Placement supported	Horizontal
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	Yes
Intel® Secure Key	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75028
Processor code	SR16M
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
