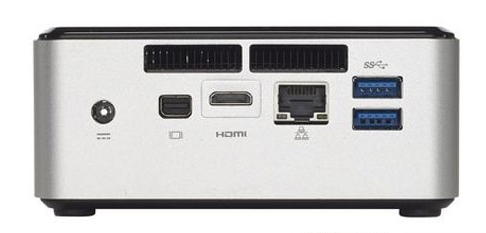

Signage Intel® Core™ i5 i5-4250U
4 GB DDR3-SDRAM 120 GB SSD USFF Mini PC Black, Silver
Model SignagePart no. ISYNUC4HI504120SIGEAN 8055681881181
141 specifications
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage120 GB
- GraphicsNot available
- TypeMini PC
- OSNo
Overview
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 120 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- No
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- Signage
- Part number
- ISYNUC4HI504120SIG
- EAN / UPC
- 8055681881181
- Also known as
- ISY Signage Intel® Core™ i5 i5-4250U 4 GB DDR3-SDRAM 120 GB SSD USFF Mini PC Black, Silver
Specifications
141 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4250U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.6 GHz |
| Processor frequency | 1.3 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI2 |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-4200 Mobile series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x4, 2x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1168 |
| Stepping | C0 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | SATA III |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 5000 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0xA26 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| HDMI version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini HDMI ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 12 V |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Placement supported | Horizontal |
| VESA mounting | Yes |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | Yes |
| Intel® Secure Key | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 75028 |
| Processor code | SR16M |
| Processor package size | 40 x 24 x 1.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Smart Connect Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.6 mm |
| Depth | 112 mm |
| Height | 34.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 120 mm |
| Package height | 250 mm |
| Package weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
