Secure 4H Small

Model Secure 4H SmallPart no. ISYNUC4HC204120SDSECEAN 8055681881006

125 specifications

Overview

Brand: ISY
Category: PCs/Workstations
Model: Secure 4H Small
Part number: ISYNUC4HC204120SDSEC
EAN / UPC: 8055681881006

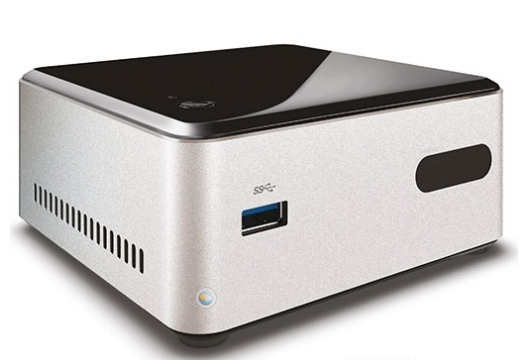

Also known as: ISY Secure 4H Small Intel® Celeron® N2820 4 GB DDR3L-SDRAM 500 GB HDD USFF Mini PC Black, Silver

125 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2820
Processor cores	2
Processor threads	2
Processor boost frequency	2.39 GHz
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1066 MHz
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	756 MHz
On-board graphics card dynamic frequency (max)	756 MHz

Specification	Value
Optical drives quantity	0

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	1.4a
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes
Total number of SATA connectors	2

Specification	Value
Mini PCI Express slots	1

Specification	Value
Power supply	36 W
Power management	Yes

Specification	Value
Operating system installed	No

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Smart Connect Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	79052
Processor code	SR1SG
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	-20 - 70%

Specification	Value
Compliance certificates	RoHS
Certification	UL 60950-1, CAN / CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, FCC CFR Title 47 A / B, ICES-003, EN 55022, EN 55024, VCCI V-3 , V-4, KN-22, KN-24, CNS 13438, CISPR 22
