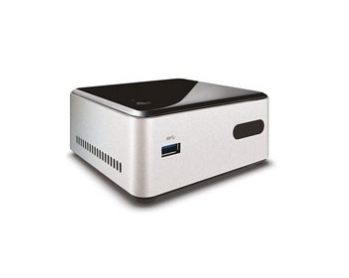

Secure 4Н
Model Secure 4НPart no. ISYNUC4HC204120SDSEC-KITEAN 8055681881495
137 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- Secure 4Н
- Part number
- ISYNUC4HC204120SDSEC-KIT
- EAN / UPC
- 8055681881495
- Also known as
- ISY Secure 4Н Intel® Celeron® N2820 4 GB DDR3L-SDRAM 500 GB HDD Windows 7 Professional Mini PC Black, Silver
Specifications
137 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N2820 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.39 GHz |
| Processor frequency | 2.13 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Celeron Processor N2000 Series for Mobile |
| Processor codename | Bay Trail |
| Thermal Design Power (TDP) | 7.5 W |
| Scenario Design Power (SDP) | 4.5 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | B3 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| HDD capacity | 500 GB |
| HDD size | 2.5" |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 756 MHz |
| On-board graphics card dynamic frequency (max) | 756 MHz |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard form factor | ATX |
| BIOS type | EEPROM |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Total number of SATA connectors | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 36 W |
| Power supply input voltage | 12 V |
Design
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black, Silver |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Operating system language | Italian |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 79052 |
| Processor code | SR1SG |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | -20 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.6 mm |
| Depth | 112 mm |
| Height | 51.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL 60950-1, CAN / CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, FCC 47 CFR Title I, Part 15 A / B, ICES-003, EN 55022, EN 55024, EN 55022, VCCI V-3, V-4, KN-2, KN-24, CNS 13438, CISPR 22 |
