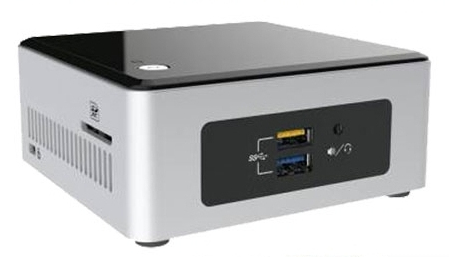

PoS 5H
Model PoS 5HPart no. ISYNUC5P3HW102120POSEAN 8055681885578
151 specifications
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage152 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 152 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- PoS 5H
- Part number
- ISYNUC5P3HW102120POS
- EAN / UPC
- 8055681885578
- Also known as
- ISY PoS 5H Intel® Pentium® N3700 2 GB DDR3L-SDRAM 152 GB SSD+eMMC Windows 10 Home Mini PC Black, Silver
Specifications
151 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | N3700 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.4 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| System bus rate | 2.5 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel® Pentium N3000 Series for Mobile |
| Processor codename | Braswell |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x2, 1x4, 2x2, 2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | C0 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 152 GB |
| Optical drive type | No |
| Storage media | SSD+eMMC |
| Number of storage drives installed | 2 |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card burst frequency | 700 MHz |
| On-board graphics card DirectX version | Yes |
| Number of execution units | 16 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard form factor | UCFF |
| BIOS type | EEPROM |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 19 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 0.6 L |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Pro Wireless Display (Intel® Pro WiDi) | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 87261 |
| Processor code | SR29E |
| Processor package size | 25 x 27 mm |
| Supported instruction sets | AES |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | -20 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 51.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 250 mm |
| Package height | 100 mm |
| Package weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | IEC, UL, EN, CAN / CSA-C22.2, CISPR 22, FCC, ICES-003, EN, VCCI V3, KN, CNS, WEEE |
