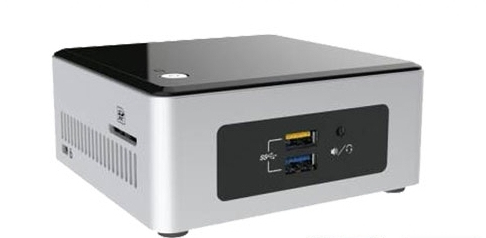

OFFICE 5 Small
Model OFFICE 5 SmallPart no. ISYNUC5C3H4120OFFEAN 8055681885615
158 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage120 GB
- GraphicsNot available
- TypeMini PC
- OSNo
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 120 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- No
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- OFFICE 5 Small
- Part number
- ISYNUC5C3H4120OFF
- EAN / UPC
- 8055681885615
- Also known as
- ISY OFFICE 5 Small Intel® Celeron® N3050 4 GB DDR3L-SDRAM 120 GB SSD Mini PC Black, Silver
Specifications
158 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3050 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.16 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Braswell |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | C0 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
| ECC | No |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| HDD interface | SATA III |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 600 MHz |
| On-board graphics card DirectX version | Yes |
| Graphics card Open GL support | Yes |
| Number of execution units | 12 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| BIOS type | EEPROM |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Line-out | Yes |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| DC-in jack | Yes |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 0.6 L |
| Placement supported | Horizontal |
| VESA mounting | Yes |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Idle Technology | Yes |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 87257 |
| Processor code | SR29H |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | -20 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 51.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 250 mm |
| Package height | 100 mm |
| Package weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Professional |
