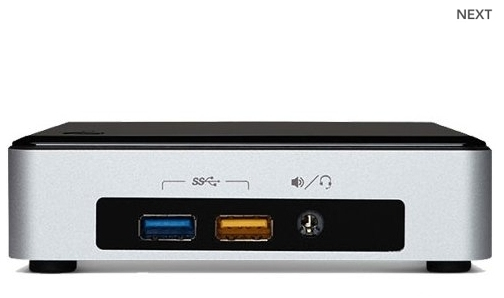

ISY NUC 5
Model ISY NUC 5Part no. ISYNUC5I504120NOSEAN 8055681882331
154 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage500 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- ISY NUC 5
- Part numbers
- ISYNUC5I504120NOS, ISYNUC5I516500NOS, ISYNUC5I516240NOS, ISYNUC5I508500NOS, ISYNUC5I508120NOS, ISYNUC5I504500NOS +1 more
- EAN / UPC
- 8055681882331, 8055681882379, 8055681884809, 8055681882386 +3 more
- Also known as
- ISY NUC 5 Intel® Core™ i5 i5-5250U 16 GB DDR3L-SDRAM 500 GB SSD USFF Mini PC Black, Silver
Specifications
154 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 5th gen Intel® Core™ i5 |
| Processor model | i5-5250U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Bus type | DMI2 |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel® Core™ i5-5200 Mobile Series |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 9.5 W |
| Configurable TDP-down frequency | 0.6 GHz |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 4x1, 2x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1168 |
| Stepping | F0 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3L-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| SSD interface | M.2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 6000 |
| Maximum on-board graphics card memory | 16 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card DirectX version | 11.3 |
| On-board graphics card ID | 0x1626 |
| On-board graphics card OpenGL version | 4.3 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| BIOS type | EEPROM |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini HDMI ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 12 - 19 V |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 84984 |
| Processor code | SR26C |
| Processor package size | 40 x24 x 1.3 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 32.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
| Manual | Yes |
