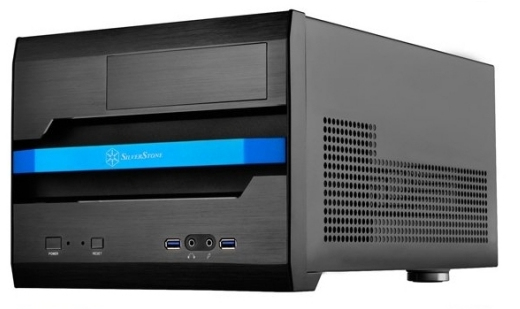

HB99-A Intel Xeon E5 v3 E5-1650V3
32 GB DDR4-SDRAM 480 GB SSD NVIDIA® Quadro® M5000 Windows 10 Desktop Workstation Black
Model HB99-APart no. ISYWTHB99-A-700-M5000EAN 8055681885820
140 specifications
- ProcessorIntel Xeon E5 v3
- Memory32 GB
- Storage480 GB
- GraphicsNVIDIA® Quadro® M5000
- TypeWorkstation
- OSWindows 10
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 32 GB
- Storage
- 480 GB
- Graphics
- NVIDIA® Quadro® M5000
- Type
- Workstation
- OS
- Windows 10
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- HB99-A
- Part numbers
- ISYWTHB99-A-700-M5000, ISYWTHB99-A-700-M6000, ISYWTHB99-A-1000-M5000K40, ISYWTHB99-A-700-M4000
- EAN / UPC
- 8055681885820, 8055681885806, 8055681885837
- Also known as
- ISY HB99-A Intel Xeon E5 v3 E5-1650V3 32 GB DDR4-SDRAM 480 GB SSD NVIDIA® Quadro® M5000 Windows 10 Desktop Workstation Black
Specifications
140 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-1650V3 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 0 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Xeon E5-1600 v3 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 66.7 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R2 |
| VID Voltage Range | 0.65 - 1.3 V |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2133 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Optical drive type | DVD Super Multi DL |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD capacity | 480 GB |
| RAID support | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® M5000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 2 |
| On-board graphics card model | Not available |
| CUDA | Yes |
| CUDA cores | 2048 |
| Graphics card DVI-I ports quantity | 1 |
| Graphics card DisplayPorts quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X99 |
| Motherboard form factor | micro ATX |
| Compatible processor series | Intel® Core™ i7 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| Total number of SATA connectors | 10 |
| Number of SATA III connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x16 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Placement supported | Horizontal |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 9 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 82765 |
| Processor code | SR20J |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 266 mm |
| Depth | 407 mm |
| Height | 210 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 500 mm |
| Package height | 260 mm |
| Package weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
Keyboard
| Specification | Value |
|---|---|
| Keyboard layout | QWERTZ |
