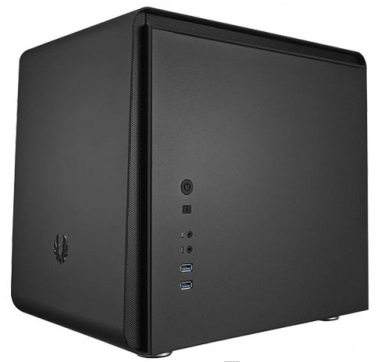

CUBE-P X99M
Model CUBE-P X99MPart no. ISY-W-CUBP-X99M4-6850KEAN 8055681887510
118 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory32 GB
- Storage512 GB
- GraphicsNVIDIA® Quadro® M2000
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® Quadro® M2000
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- CUBE-P X99M
- Part numbers
- ISY-W-CUBP-X99M4-6850K, ISY-W-CUBP-X99M4-1650-2, ISY-W-CUBP-X99M4-1650-4, ISY-W-CUBP-X99M4-1650-5
- EAN / UPC
- 8055681887510, 8055681887527, 8055681887503, 8055681887497
- Also known as
- ISY CUBE-P X99M Intel® Xeon® E5 v4 E5-1650V4 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® M2000 Windows 10 Pro Workstation Black
Specifications
118 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-1650V4 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 69 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R0 |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® M2000 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Open GL support | Yes |
| CUDA | Yes |
| CUDA cores | 768 |
| Graphics card DisplayPorts quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X99 |
| Compatible processor series | Intel® Xeon® |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Total number of SATA connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 700 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 92994 |
| Processor code | SR2P7 |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 330 mm |
| Height | 374 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 260 mm |
| Package height | 500 mm |
| Package weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
