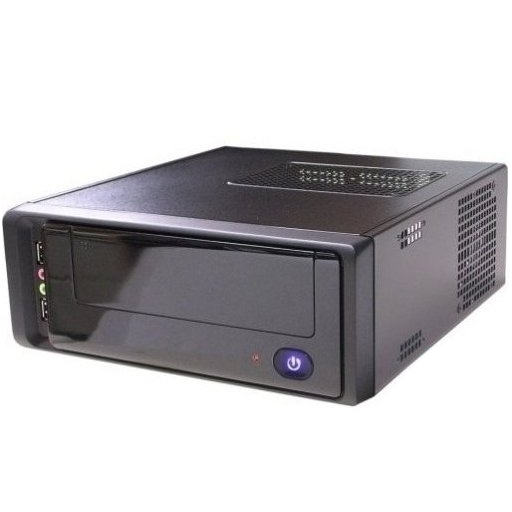

ISY CADSmall-E Intel® Xeon® E3 V3 Family E3-1270V3

16 GB DDR3-SDRAM 120 GB SSD NVIDIA® Quadro® K620 Windows 7 Professional Mini Tower Workstation Black

Model CADSmall-EPart no. ISYWSZ97I-E3-K620EAN 8055681881907

134 specifications

ProcessorIntel® Xeon® E3 V3 Family
Memory16 GB
Storage120 GB
GraphicsNVIDIA® Quadro® K620
SpeedWi-Fi 5 (802.11ac)
TypeWorkstation

See all specifications

Overview

Processor: Intel® Xeon® E3 V3 Family
Memory: 16 GB
Storage: 120 GB
Graphics: NVIDIA® Quadro® K620
Speed: Wi-Fi 5 (802.11ac)
Type: Workstation

Brand: ISY
Category: PCs/Workstations
Model: CADSmall-E
Part number: ISYWSZ97I-E3-K620
EAN / UPC: 8055681881907
Also known as: ISY CADSmall-E Intel® Xeon® E3 V3 Family E3-1270V3 16 GB DDR3-SDRAM 120 GB SSD NVIDIA® Quadro® K620 Windows 7 Professional Mini Tower Workstation Black

Specifications

134 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1270V3
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.5 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200 v3
Processor codename	Haswell
Thermal Design Power (TDP)	80 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory clock speed	1600 MHz
ECC	No
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	120 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	120 GB
SSD interface	SATA III

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® K620
Discrete graphics card memory	2 GB
On-board graphics card model	Not available
Graphics card DVI-I ports quantity	1
Graphics card DisplayPorts quantity	1

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Z97
Motherboard form factor	mini ITX
BIOS type	AMI
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	1
S/PDIF out port	Yes
Serial ports quantity	1
Parallel ports quantity	2
Number of SATA connectors	4

Expansion slots

Specification	Value
PCI Express x16 (Gen 3.x) slots	1
Mini PCI Express slots	4

Power

Specification	Value
Power supply	150 W

Design

Specification	Value
Chassis type	Mini Tower
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Operating system language	Italian

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75056
Processor code	SR151
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC892

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
