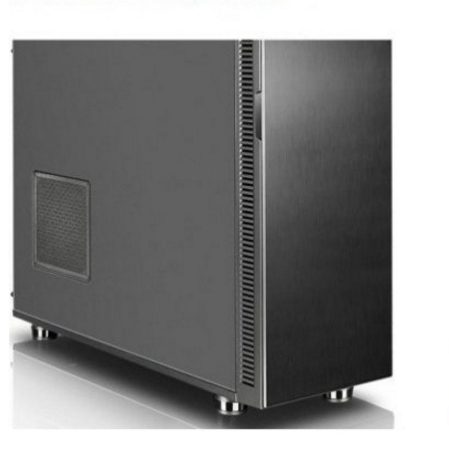

15127.02 Intel® Xeon® E5 Family E5-2687W
64 GB DDR4-SDRAM 400 GB SSD NVIDIA® Quadro® M5000 Windows 10 Pro Tower Workstation Black
Model 15127.02Part no. ISY-W-Z10PED16WS-2687-6EAN 8055681887435
101 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory64 GB
- Storage400 GB
- GraphicsNVIDIA® Quadro® M5000
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 64 GB
- Storage
- 400 GB
- Graphics
- NVIDIA® Quadro® M5000
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- ISY
- Category
- PCs/Workstations
- Model
- 15127.02
- Part number
- ISY-W-Z10PED16WS-2687-6
- EAN / UPC
- 8055681887435
- Also known as
- ISY 15127.02 Intel® Xeon® E5 Family E5-2687W 64 GB DDR4-SDRAM 400 GB SSD NVIDIA® Quadro® M5000 Windows 10 Pro Tower Workstation Black
Specifications
101 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2687W |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.1 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 8 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 |
| Processor codename | Sandy Bridge EP |
| Thermal Design Power (TDP) | 150 W |
| Tcase | 67 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 2 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 38 |
| Stepping | C2 |
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 16x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 400 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 400 GB |
| Card reader integrated | No |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® M5000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Motherboard form factor | EEB |
| Compatible processor series | Intel® Xeon® |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| Number of SATA III connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Smart Cache | Yes |
| Processor ARK ID | 64582 |
| Processor code | SR0KG |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | S2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330.2 mm |
