OPC5801BC PC/workstation Intel® Core™ i5 i5-8265U
8 GB DDR4-SDRAM 256 GB Windows 10 IoT Enterprise Mini PC Black
Model OPC5801BCEAN 4948570032822
74 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
- OSWindows 10 IoT Enterprise
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- OS
- Windows 10 IoT Enterprise
- Brand
- iiyama
- Category
- PCs/Workstations
- Model
- OPC5801BC
- Part number
- OPC5801BC
- EAN / UPC
- 4948570032822, 4948570032884
- Also known as
- iiyama OPC5801BC PC/workstation Intel® Core™ i5 i5-8265U 8 GB DDR4-SDRAM 256 GB Windows 10 IoT Enterprise Mini PC Black
Specifications
74 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Bus type | OPI |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 620 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

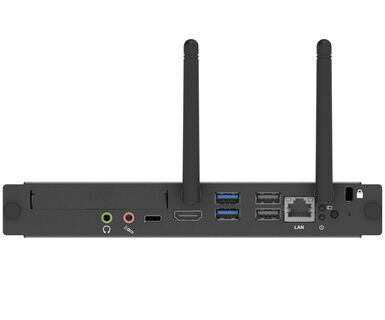

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | No |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 60 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (typical) | 60 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202 mm |
| Depth | 133 mm |
| Height | 30 mm |
| Weight | 740 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 267 mm |
| Package depth | 192 mm |
| Package height | 72 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
