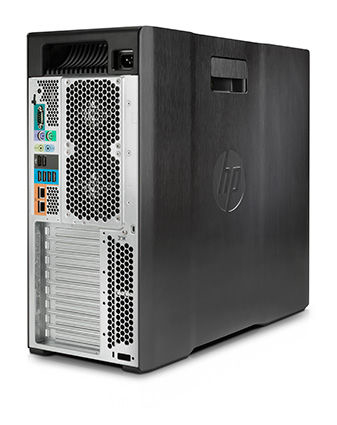

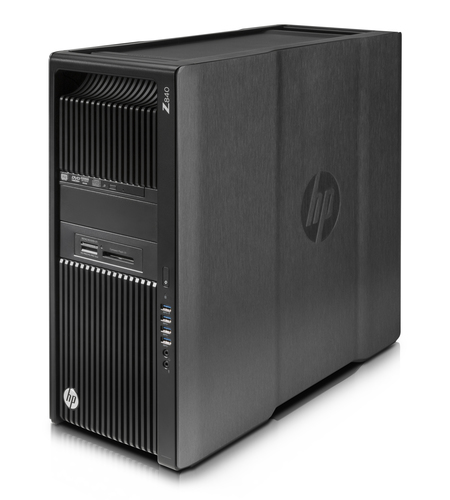

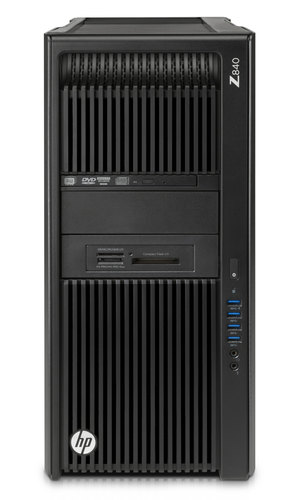

HP Z840 Tower + NVIDIA Quadro M2000

Model Z840 Tower + NVIDIA Quadro M2000Part no. KIT38931

120 specifications

ProcessorIntel® Xeon® E5 v4
Memory32 GB
Storage512 GB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 v4
Memory: 32 GB
Storage: 512 GB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Z840 Tower + NVIDIA Quadro M2000
Part number: KIT38931
Also known as: HP Z840 Tower + NVIDIA Quadro M2000 Intel® Xeon® E5 v4 E5-2680V4 32 GB DDR3L-SDRAM 512 GB SSD Windows 7 Professional Workstation Black

Specifications

120 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2680V4
Processor cores	14
Processor threads	28
Processor boost frequency	3.3 GHz
Processor frequency	2.4 GHz
Processor cache	35 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	9.6 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	120 W
Tcase	86 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	M0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	512 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	4 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2133 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	512 GB
Optical drive type	DVD Super Multi
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x1 (Gen 2.x) slots	1
PCI Express x4 (Gen 2.x) slots	1

Power

Specification	Value
Power supply	1125 W

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	2
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	91754
Processor code	SR2N7
Processor package size	45 x 52.5 mm
Scalability	2S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	203 mm
Depth	525 mm
Height	444 mm
Weight	21.1 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
