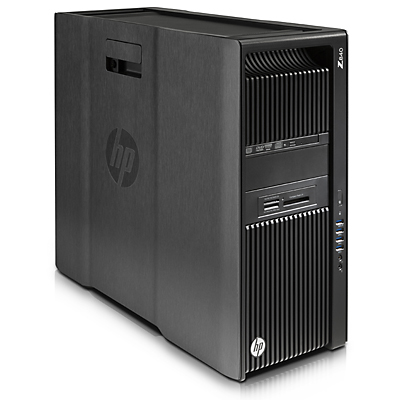

HP Z840 Intel Xeon E5 v3 E5-2620V3

8 GB DDR4-SDRAM 1 TB HDD NVIDIA® Quadro® K2200 Windows 7 Professional Mini Tower Workstation Black

Model Z840Part no. G1X76ETEAN 888793893357

124 specifications

ProcessorIntel Xeon E5 v3
Memory8 GB
Storage1 TB
GraphicsNVIDIA® Quadro® K2200
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel Xeon E5 v3
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® Quadro® K2200
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Z840
Part numbers: G1X76ET, G1X76EA, G1X77EA, G1X78EA, 1WV79EA, 2ZV33PA +25 more
EAN / UPC: 888793893357, 888793837672, 888793837696, 888793837689 +56 more
Also known as: HP Z840 Intel Xeon E5 v3 E5-2620V3 8 GB DDR4-SDRAM 1 TB HDD NVIDIA® Quadro® K2200 Windows 7 Professional Mini Tower Workstation Black

Specifications

124 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2620V3
Processor cores	6
Processor threads	12
Processor boost frequency	3.2 GHz
Processor frequency	2.4 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v3
Processor codename	Haswell
Thermal Design Power (TDP)	85 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R2
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2133 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	Blu-Ray RW
Storage media	HDD
Total HDDs capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® Quadro® K2200
Discrete graphics card memory	4 GB
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Power

Specification	Value
Power supply	850 W

Design

Specification	Value
Chassis type	Mini Tower
Liquid cooling system	No
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	83352
Processor code	SR207
Processor package size	52.5 x 45 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	203 mm
Depth	525 mm
Height	444 mm
Weight	21.1 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
