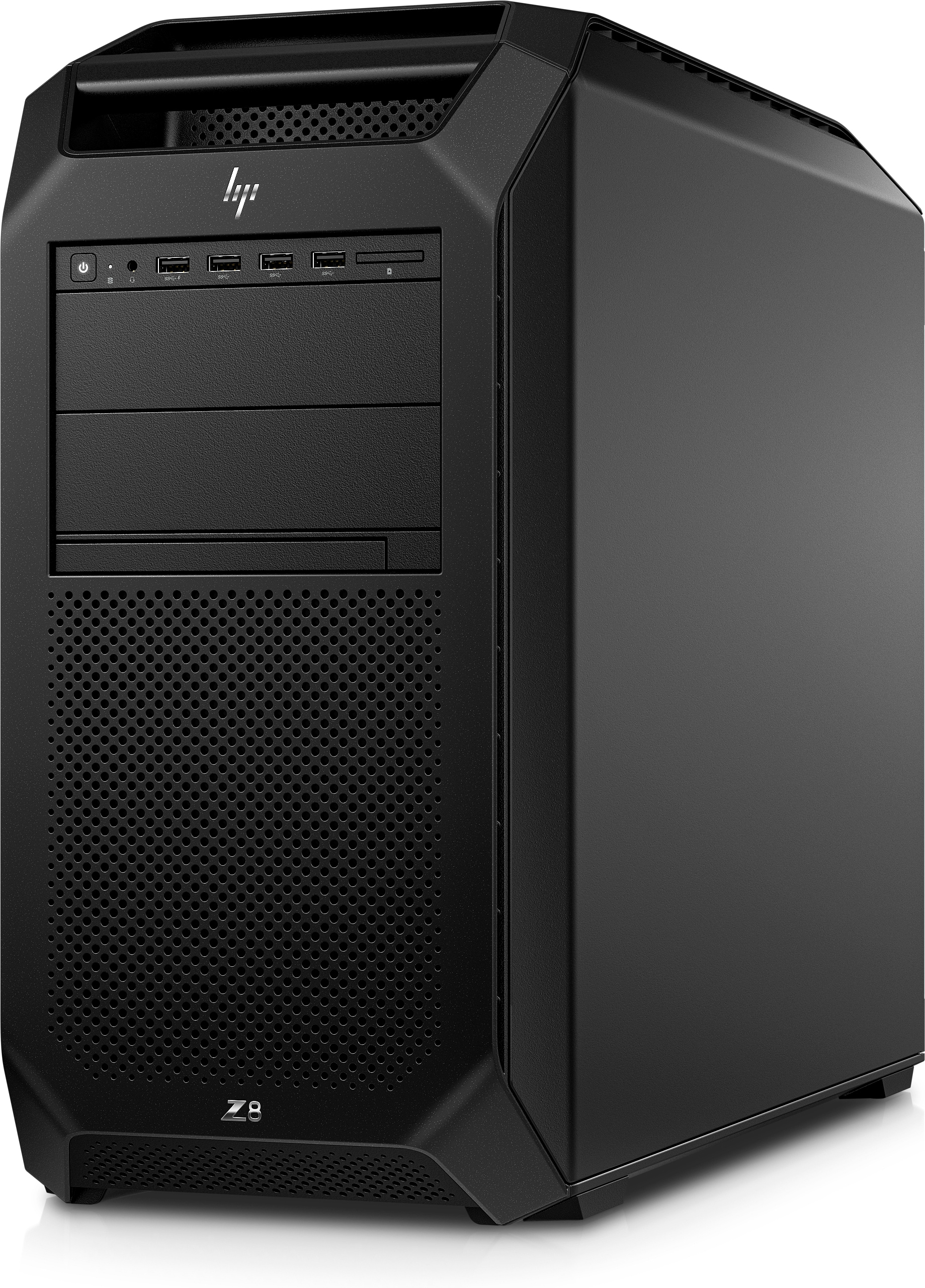

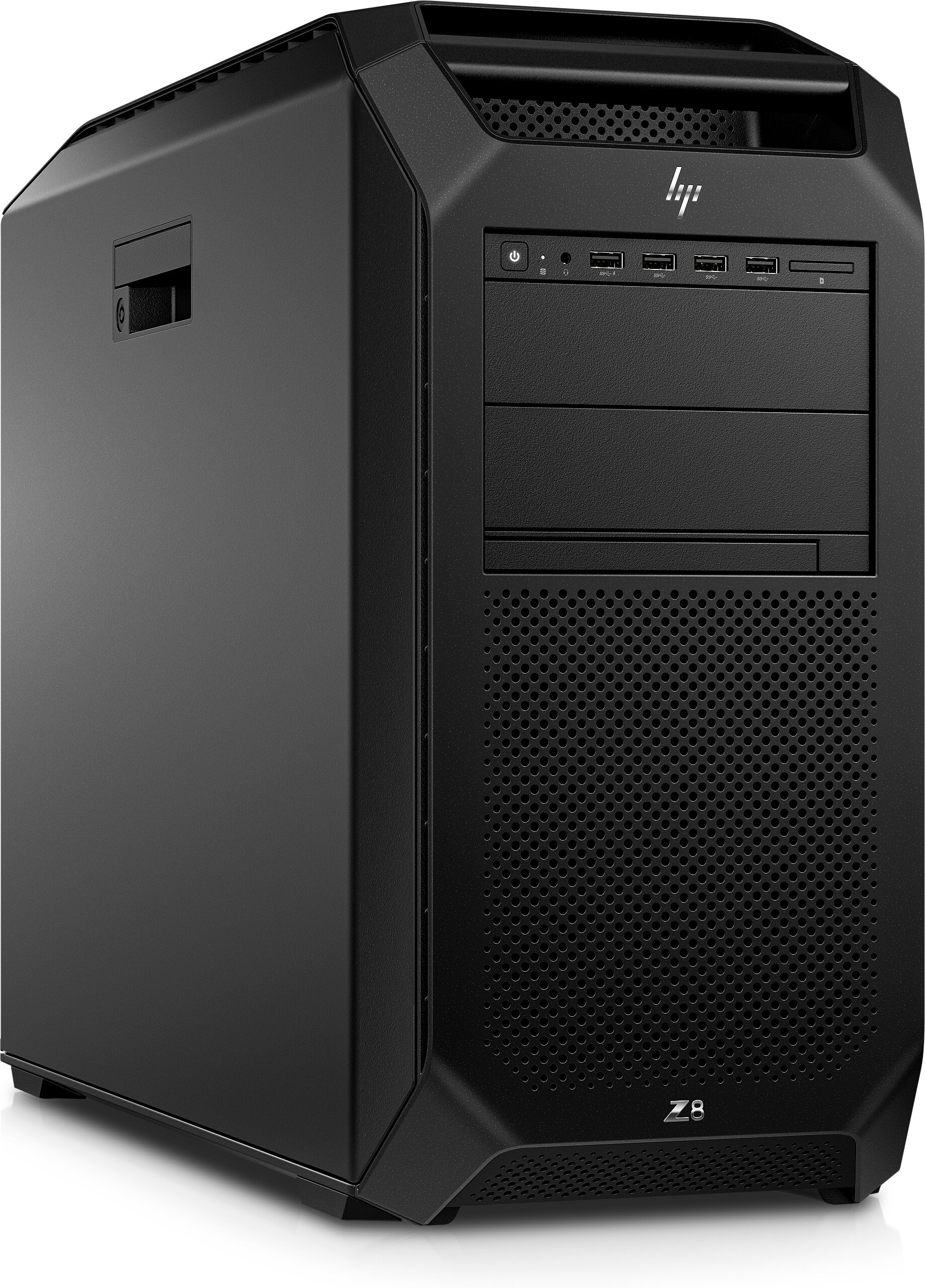

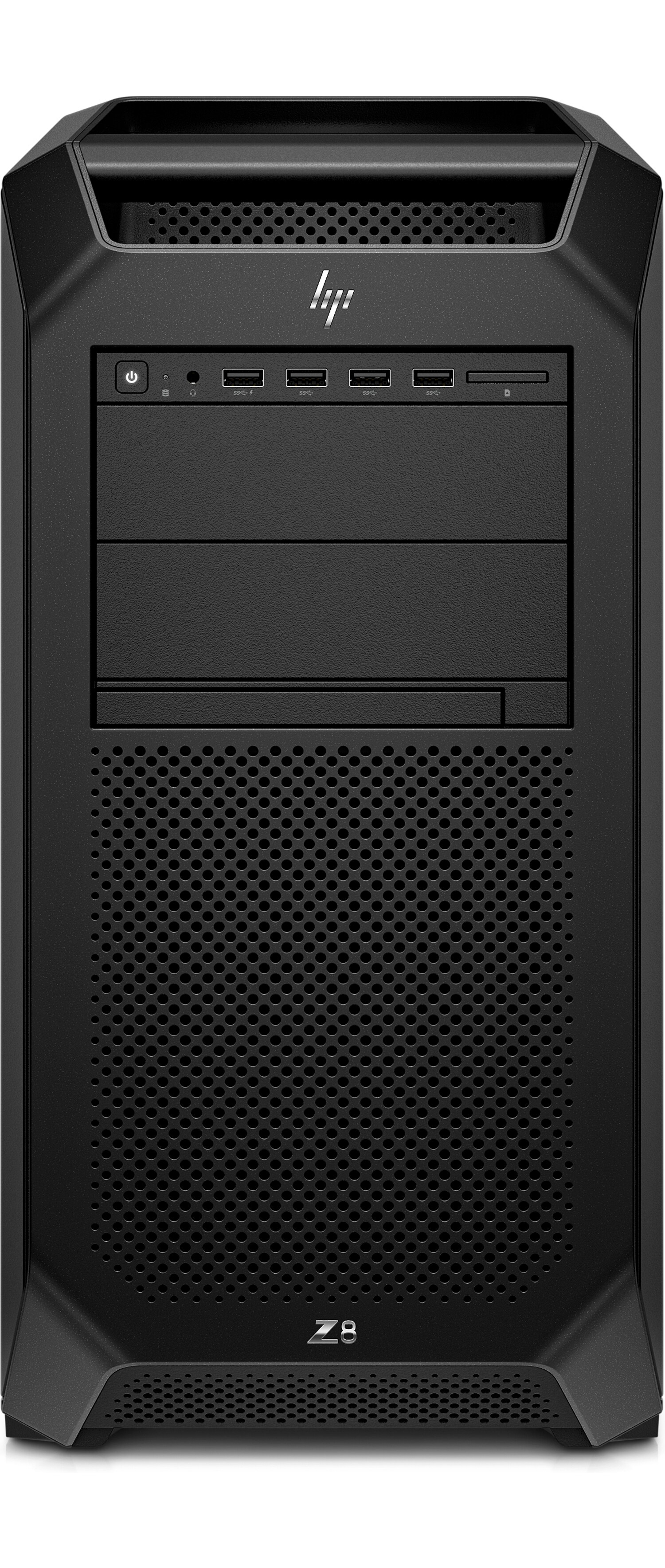

Z8 TWR G5
Model Z8 TWR G5Part no. 53440068
76 specifications
- ProcessorIntel® Xeon® Gold
- Memory128 GB
- Storage2 TB
- GraphicsNVIDIA RTX A400
- TypeWorkstation
- OSWindows 11 Pro for Workstations
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 128 GB
- Storage
- 2 TB
- Graphics
- NVIDIA RTX A400
- Type
- Workstation
- OS
- Windows 11 Pro for Workstations
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z8 TWR G5
- Part number
- 53440068
- Also known as
- HP Z8 TWR G5 Intel® Xeon® Gold 128 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX A400 Windows 11 Pro for Workstations Tower Workstation Black
Specifications
76 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | Intel Xeon Scalable 5th Gen |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.8 GHz |
| Processor cache | 37.5 MB |
| Number of processors installed | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 5600 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX A400 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Motherboard chipset | Intel C741 |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1450 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cable lock slot | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Security tools | HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certicate; HP Sure Start; HP Sure Recover |
| HP Management tools | HP Driver Packs; HP Smart Support |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack Manager |
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215.9 mm |
| Depth | 551.2 mm |
| Height | 444.5 mm |
| Weight | 22.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 332 mm |
| Package depth | 734 mm |
| Package height | 636 mm |
| Package weight | 27.9 kg |
