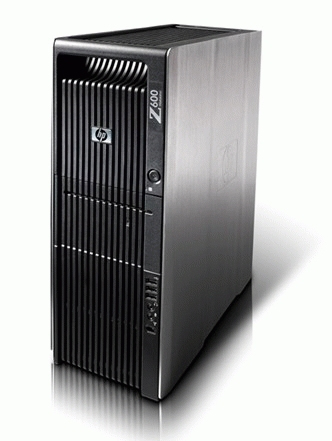

HP Z600 Workstation
Model Z600 WorkstationPart no. KK652ET#UUZ#*B1EAN 884962515075
121 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory3 GB
- Storage320 GB
- TypeWorkstation
- OSWindows Vista Business
- Weight19 kg
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 3 GB
- Storage
- 320 GB
- Type
- Workstation
- OS
- Windows Vista Business
- Weight
- 19 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z600 Workstation
- Part numbers
- KK652ET#UUZ#*B1, KK532EA, DUMHPWKXW6800, KK549ET, KK532EA#UUZ#*B1, KK652ET#UUZ#*B5 +34 more
- EAN / UPC
- 884962515075, 884962104873, 884962104880, 884962104897 +56 more
- Also known as
- HP Z600 Workstation Intel® Xeon® 5000 Sequence E5520 3 GB DDR3-SDRAM Windows Vista Business Mini Tower
Specifications
121 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5520 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 2.53 GHz |
| Processor frequency | 2.26 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 5.86 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5500 Series |
| Processor codename | Nehalem EP |
| Processor system type | DP |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 72 °C |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| CPU multiplier (bus/core ratio) | 17 |
| Stepping | D0 |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Maximum internal memory | 24 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 3 x 1 GB |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
| Memory upgrade | 24 GB |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Maximum HDD capacity | 600 GB |
| Minimum storage drive space | 146 GB |
| Storage drive controller | Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, optional SAS controller, LSI 3041E 4-port SAS/SATA, with RAID (0, 1 or 10) capability |
| Diskette drive | No |
| Storage drive type | 320 GB 7200 rpm SATA NCQ SATA 320 GB |
| HDD controller type | SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm) |
Graphics
| Specification | Value |
|---|---|
| Video card features | No integrated Graphic Card |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 5520 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
| I/O ports | Front: 3 USB 2.0, 1 microphone in, 1 headphone out, optional 1 IEEE 1394a; Rear: 6 USB 2.0, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 1 RJ-45 to integrated Gigabit LAN, optional 1 serial; Internal: 3 USB 2.0 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 PCI Express Gen2 x16, 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 2 PCI |
Power
| Specification | Value |
|---|---|
| Power requirements | 650 watts wide-ranging, active Power Factor Correction, 85% efficient Power Supply |
| Power supply | 650 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Compatible operating systems | Red Hat Enterprise Linux WS 5 64-bit, Novell Suse SLED 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
| Display | HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 40 bit |
| Processor ARK ID | 40200 |
| Processor code | SLBFD |
| Processor package size | 42.5 x 45 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers |
| Audio included | Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 8 - 90% |
| Non-operating altitude | 9100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165.3 mm |
| Depth | 440 mm |
| Height | 445.1 mm |
| Weight | 19 kg |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP USB Laser Scroll Mouse |
| Keyboard type | HP PS/2 Standard Keyboard |
Features
| Specification | Value |
|---|---|
| Security management description | HP Solenoid Hood Lock & Hood Sensor, optional Security Cable with Kensington Lock, optional HP Solenoid Lock |
Other features
| Specification | Value |
|---|---|
| Drive bays | 2 external 5.25" bays 2 internal 3.5" bays (up to 3 with converter) |
