Z6 G5 A Wolf Pro Security Edition
Model Z6 G5 A Wolf Pro Security EditionPart no. CA7V2EAEAN 199642658769
114 specifications
- ProcessorAMD Ryzen Threadripper PRO
- Memory128 GB
- Storage1 TB
- GraphicsNVIDIA RTX PRO 4000 Blackwell
- SpeedWi-Fi 6E (802.11ax)
- TypeWorkstation
Overview
- Processor
- AMD Ryzen Threadripper PRO
- Memory
- 128 GB
- Storage
- 1 TB
- Graphics
- NVIDIA RTX PRO 4000 Blackwell
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Workstation
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z6 G5 A Wolf Pro Security Edition
- Part numbers
- CA7V2EA, CA2Y4EA, CA2Y1EA, CA2Y2EA, CA2Y3EA, CA2Y5EA +2 more
- EAN / UPC
- 199642658769, 199642622524, 199642583382, 199642586024 +4 more
- Also known as
- HP Z6 G5 A Wolf Pro Security Edition AMD Ryzen Threadripper PRO 9985WX 128 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX PRO 4000 Blackwell Windows 11 Pro Tower Workstation
Specifications
114 specifications in 23 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Threadripper PRO |
| Processor generation | AMD Ryzen™ Threadripper™ PRO 9000 WX-Series |
| Processor model | 9985WX |
| Processor cores | 64 |
| Processor threads | 128 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 256 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory clock speed | 6400 MHz |
| ECC | Yes |
| Memory data transfer rate | 6400 MT/s |
| Memory module type | DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX PRO 4000 Blackwell |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

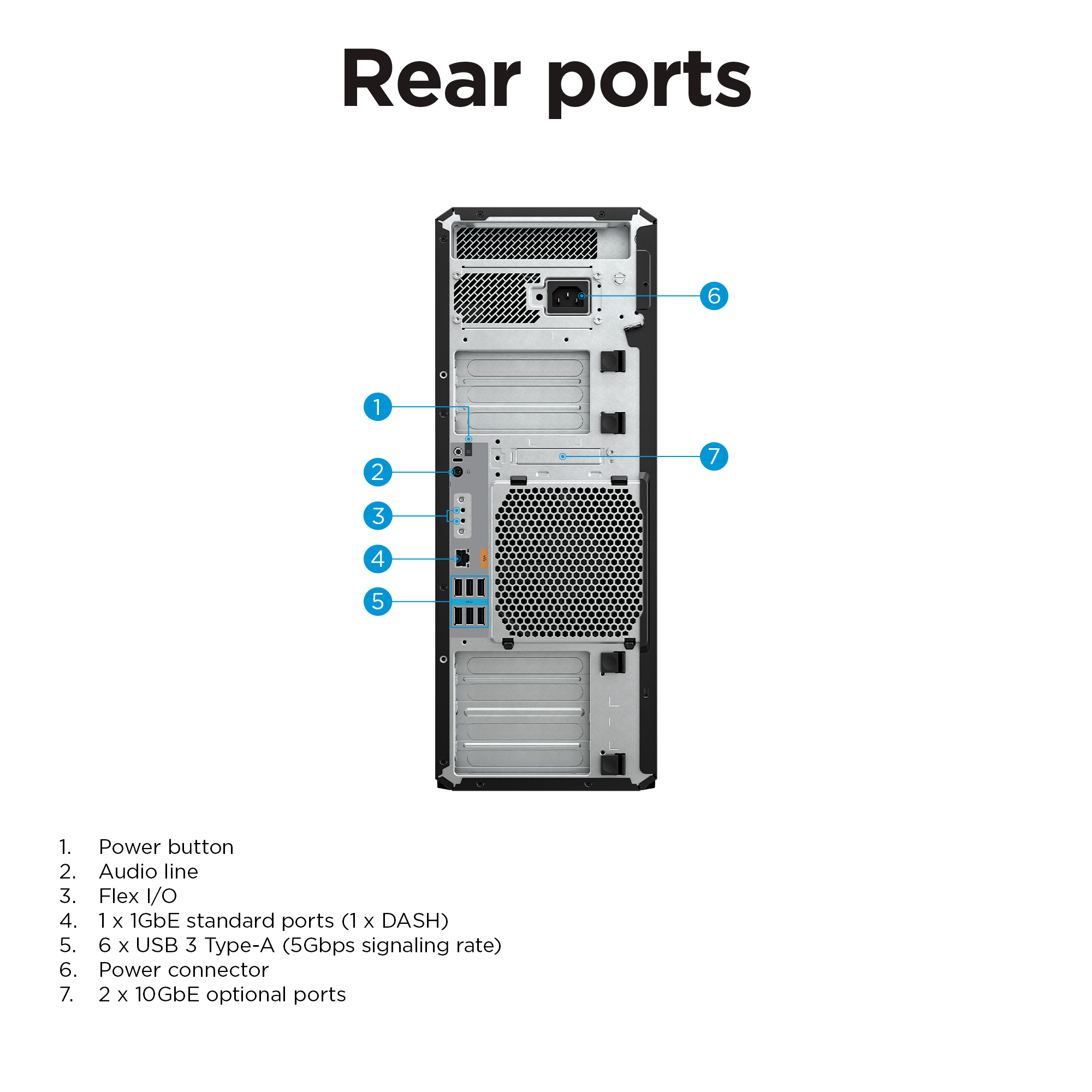

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x4 slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1450 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | No |
| Introduction year | 2025 |
| Country of origin | Czech Republic |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
| Bundled software | HP Wolf Pro Security Edition (1 year) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 199642622524 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |

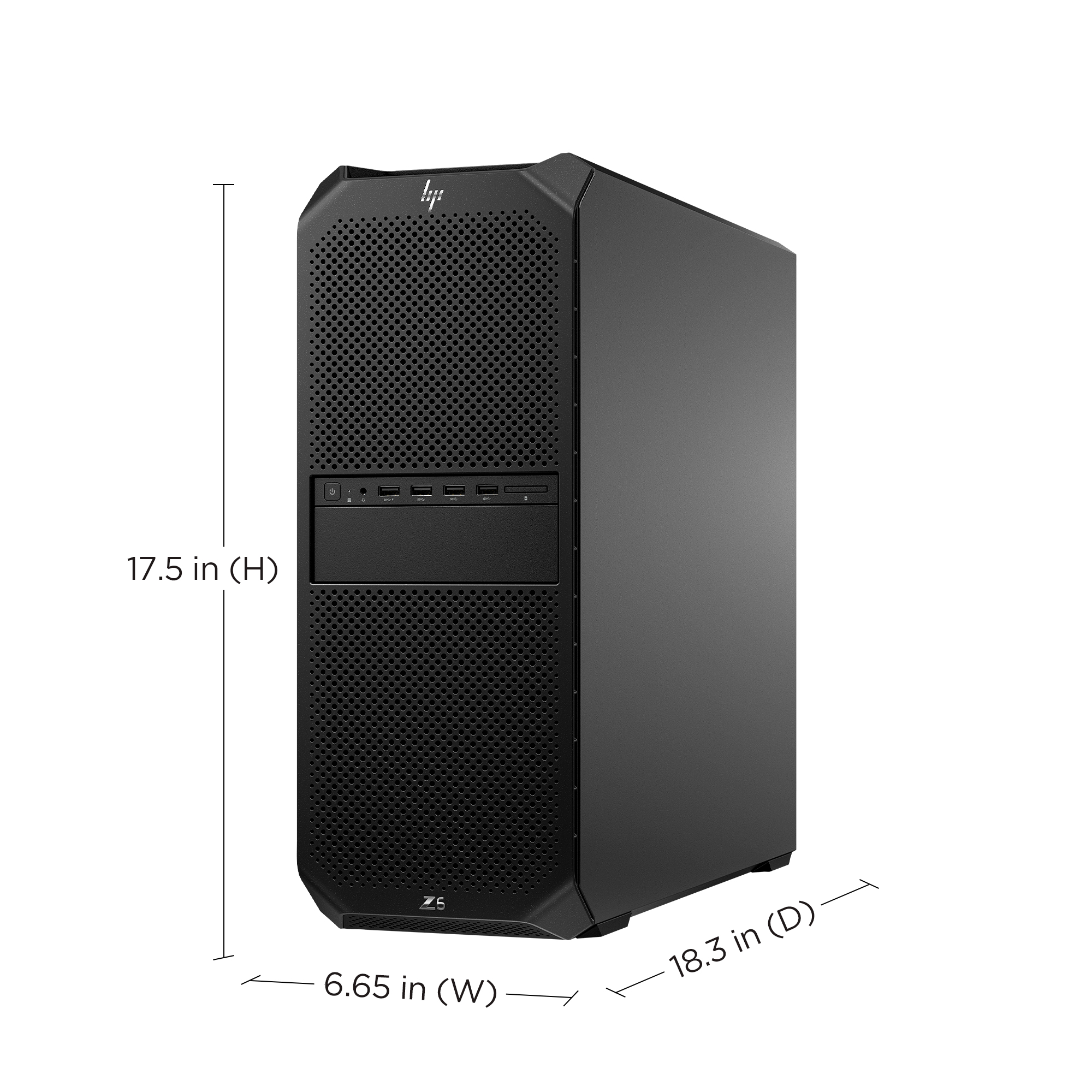

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 465 mm |
| Height | 169 mm |
| Weight | 13.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 313 mm |
| Package depth | 593 mm |
| Package height | 610 mm |
| Package weight | 18.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
| Numeric keypad | No |
| Input device model | HP Wired 320M Mouse |
Certificates
| Specification | Value |
|---|---|
| Low halogen | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| Sustainable technologies and materials | 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% effi |
| Sustainability compliance | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
Supplier features
| Specification | Value |
|---|---|
| Manufacturer warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_8827218_en-US-1.pdf |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43211515 |
