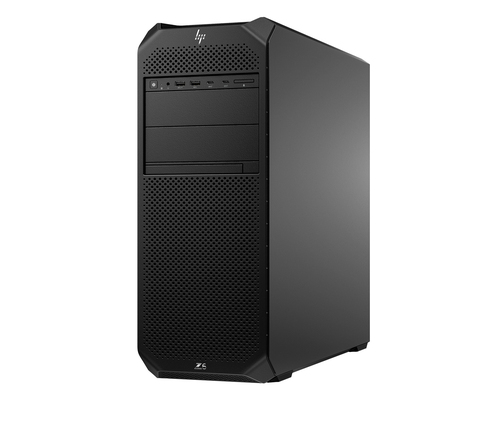

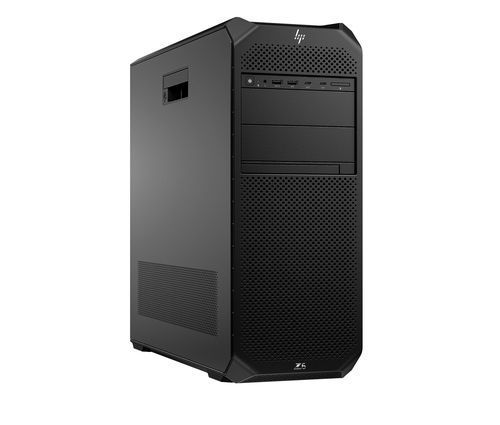

Z6 G5 A
Model Z6 G5 APart no. 5E8Z6EAEAN 826581119685
65 specifications
- ProcessorAMD Ryzen Threadripper PRO
- Memory128 GB
- Storage6 TB
- GraphicsNVIDIA RTX 4500 Ada
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- AMD Ryzen Threadripper PRO
- Memory
- 128 GB
- Storage
- 6 TB
- Graphics
- NVIDIA RTX 4500 Ada
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z6 G5 A
- Part numbers
- 5E8Z6EA, B64A3UP#ABA, B64A5UP#ABA, CK7E9ET#UUW, 73873655, 74009682 +14 more
- EAN / UPC
- 826581119685, 198990190877, 826581119562, 826581119579 +56 more
- Also known as
- HP Z6 G5 A AMD Ryzen Threadripper PRO 7965WX 128 GB DDR5-SDRAM 6 TB SSD NVIDIA RTX 4500 Ada Windows 11 Pro Tower Workstation Black
Specifications
65 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Threadripper PRO |
| Processor model | 7965WX |
| Processor cores | 24 |
| Processor threads | 48 |
| Processor boost frequency | 5.3 GHz |
| Processor frequency | 4.2 GHz |
| Processor cache | 128 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory data transfer rate | 5600 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 6 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 2 |
| Total SSDs capacity | 6 TB |
| Number of SSDs installed | 2 |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX 4500 Ada |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 14 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1450 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP BIOSphere; HP Sure Run; HP SureClick; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover |
| HP Management tools | HP Driver Packs; HP Smart Support |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 465 mm |
| Height | 445 mm |
| Weight | 13.2 kg |
