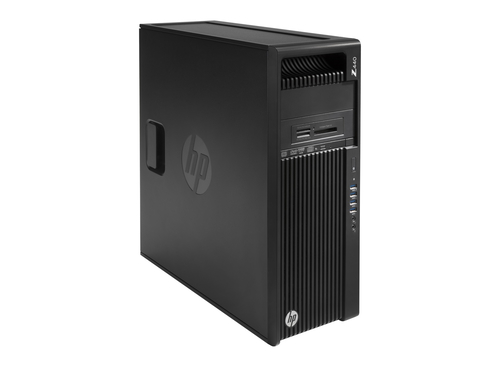

HP Z440 MT + NVIDIA Quadro K620 + Z Turbo Drive G2 256GB PCIe SSD

Model Z440 MT + NVIDIA Quadro K620 + Z Turbo Drive G2 256GB PCIe SSDPart no. KIT39537

112 specifications

ProcessorIntel® Xeon® E5 v4
Memory8 GB
Storage1 TB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 v4
Memory: 8 GB
Storage: 1 TB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Z440 MT + NVIDIA Quadro K620 + Z Turbo Drive G2 256GB PCIe SSD
Part number: KIT39537
Also known as: HP Z440 MT + NVIDIA Quadro K620 + Z Turbo Drive G2 256GB PCIe SSD Intel® Xeon® E5 v4 E5-1603V4 8 GB DDR4-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workst

Specifications

112 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-1603V4
Processor cores	4
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	10 MB
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Maximum internal memory supported by processor	1.54 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	128 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	8x DIMM
Memory clock speed	2133 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 (Gen 2.x) slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2

Power

Specification	Value
Power supply	700 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	2
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Flex Memory Access	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	93100
Processor package size	52.5 x 51 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC221

Weight & dimensions

Specification	Value
Width	169 mm
Depth	445 mm
Height	432 mm
Weight	11 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
