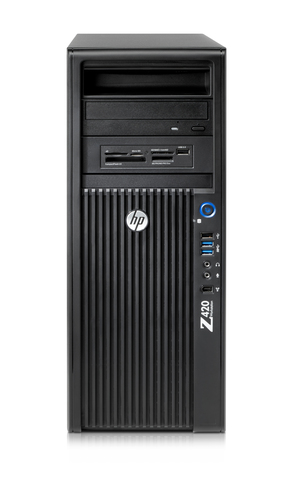

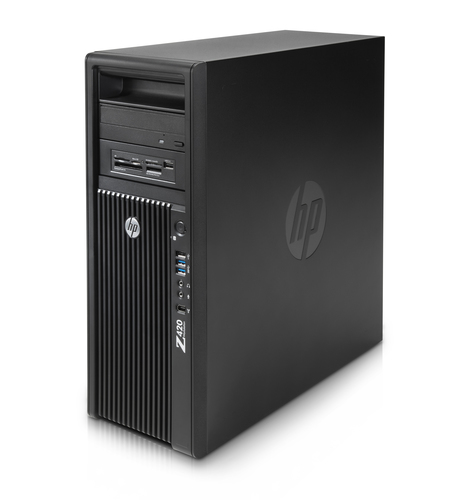

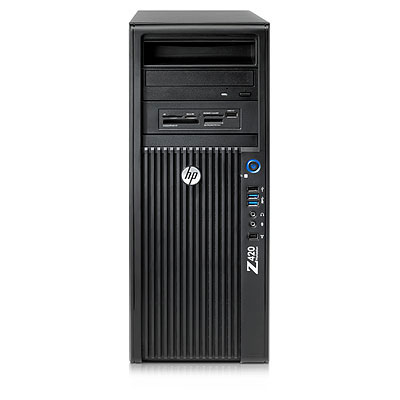

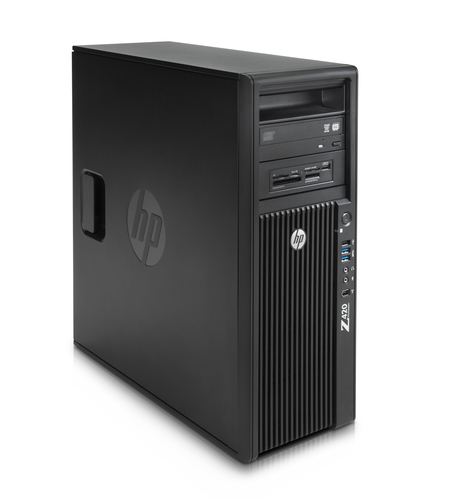

Z420 arbetsstation

Model Z420 arbetsstationPart no. WM533ETEAN 887758515501

128 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z420 arbetsstation
Part number: WM533ET
EAN / UPC: 887758515501, 887758515198, 887758515204, 887758515211 +9 more
Also known as: HP Z420 arbetsstation Intel® Xeon® E5 Family E5-2665 16 GB DDR3-SDRAM 256 GB SSD Windows 7 Professional Mini Tower Workstation Black

128 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2665
Processor cores	8
Processor threads	16
Processor boost frequency	3.1 GHz
Processor frequency	2.4 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	115 W
Tcase	81.8 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	31
Stepping	C2
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Specification	Value
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2

Specification	Value
Power supply	600 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64597
Processor code	SR0L1
Processor package size	52.5 x 45.0 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
