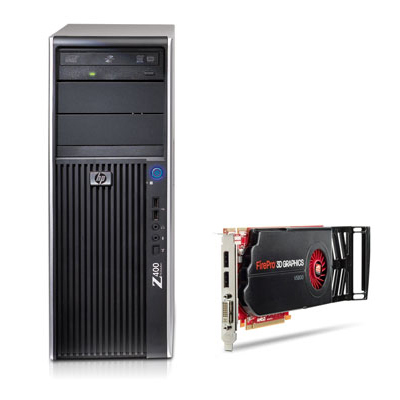

Z400 + WL050AA
Model Z400 + WL050AAPart no. KK683ET#AK6#*2
78 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory3 GB
- Storage250 GB
- TypeWorkstation
- OSWindows 7 Professional
- Weight19.6 kg
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 3 GB
- Storage
- 250 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Weight
- 19.6 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z400 + WL050AA
- Part numbers
- KK683ET#AK6#*2, KK718ET#AK6#*2
- Also known as
- HP Z400 + WL050AA Intel® Xeon® 3000 Sequence W3503 3 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation
Specifications
78 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | W3503 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.4 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 130 W |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 3 x 1 GB |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
| Total HDDs capacity | 250 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Graphics card | No |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X58 Express |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 475 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Minitower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 32-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 40800 |
| Processor package size | 42.5 x 45 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 8 - 90% |
| Non-operating altitude | 9100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167.9 mm |
| Depth | 455.3 mm |
| Height | 450.2 mm |
| Weight | 19.6 kg |
