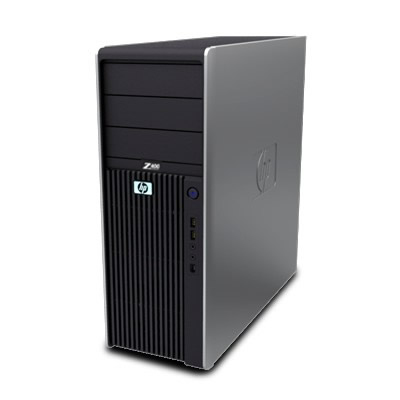

Z400 Base Model Workstation
Model Z400 Base Model WorkstationPart no. FX625AVEAN 884962087411
70 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory4 GB
- Storage320 GB
- TypeWorkstation
- OSWindows XP Professional
- ColourBlack
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 4 GB
- Storage
- 320 GB
- Type
- Workstation
- OS
- Windows XP Professional
- Colour
- Black
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z400 Base Model Workstation
- Part number
- FX625AV
- EAN / UPC
- 884962087411
- Also known as
- HP Z400 Base Model Workstation Intel® Xeon® 3000 Sequence W3503 4 GB DDR3-SDRAM Windows XP Professional Tower Black
Specifications
70 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | W3503 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.4 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 130 W |
| Number of QPI links | 1 |
| Maximum number of SMP processors | 1 |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| Card reader integrated | No |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X58 Express |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
| External drive bays | 3x 5.25" |
| Internal drive bays | 2x 3.5" |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 40800 |
| Processor package size | 42.5 x 45 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167.9 mm |
| Depth | 455.3 mm |
| Height | 450.2 mm |
