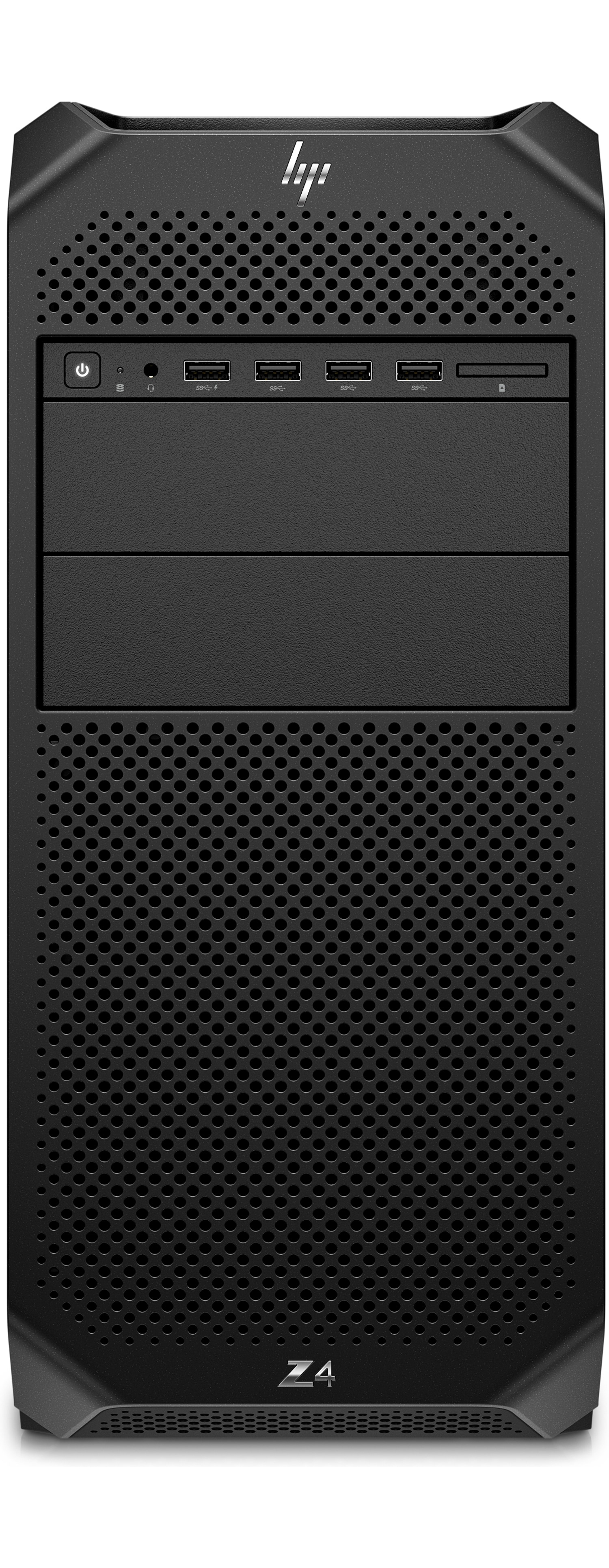

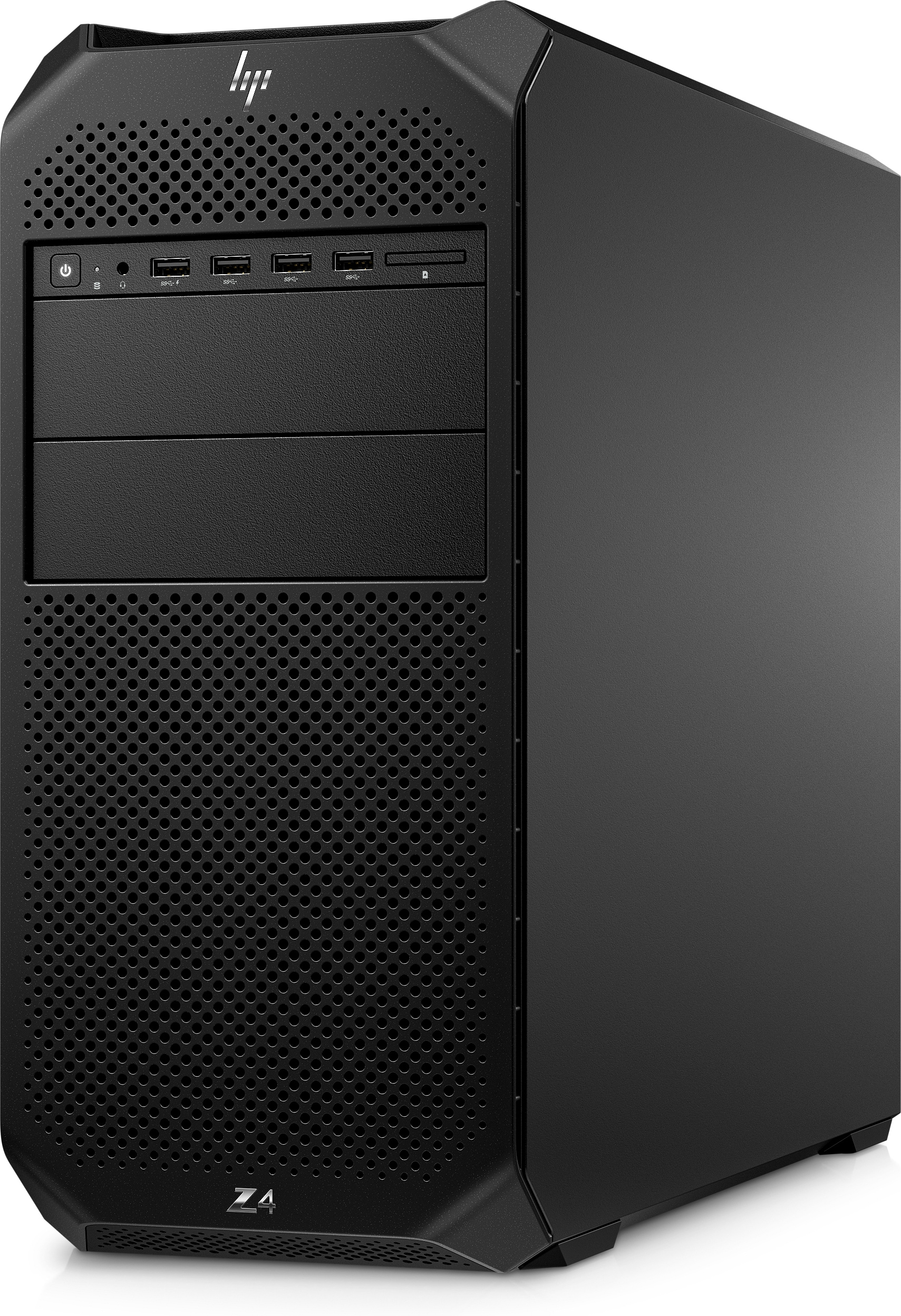

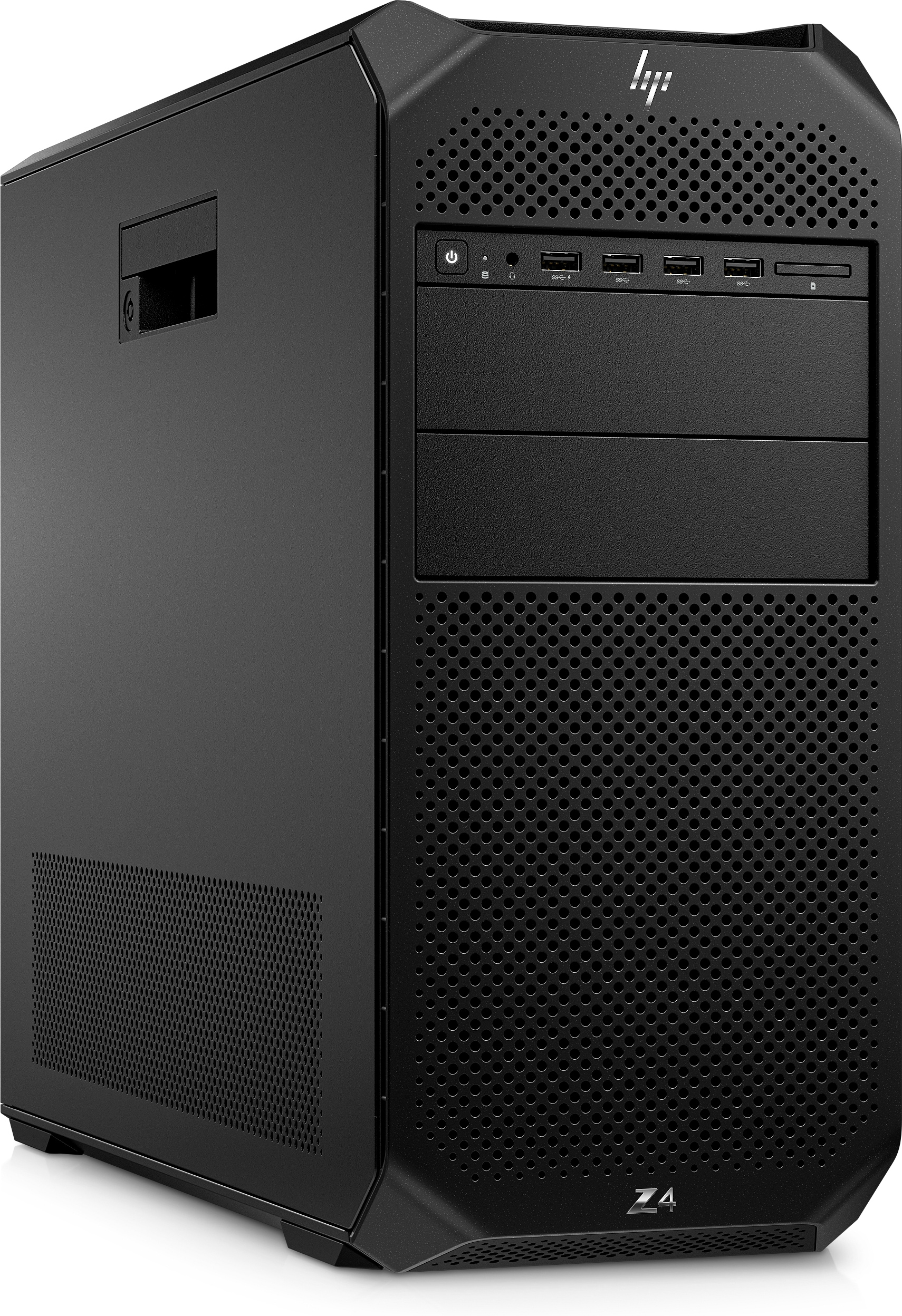

Z4 TWR G5
Model Z4 TWR G5Part no. 53440349
83 specifications
- ProcessorIntel Xeon W
- Memory64 GB
- Storage4 TB
- GraphicsNVIDIA RTX A1000
- TypeWorkstation
- OSWindows 11 Pro for Workstations
Overview
- Processor
- Intel Xeon W
- Memory
- 64 GB
- Storage
- 4 TB
- Graphics
- NVIDIA RTX A1000
- Type
- Workstation
- OS
- Windows 11 Pro for Workstations
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z4 TWR G5
- Part number
- 53440349
- Also known as
- HP Z4 TWR G5 Intel Xeon W w3-2423 64 GB DDR5-SDRAM 4 TB SSD NVIDIA RTX A1000 Windows 11 Pro for Workstations Tower Workstation Black
Specifications
83 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | w3-2423 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 2.1 GHz |
| Performance cores | 6 |
| Efficient cores | 0 |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 144 W |
| Processor base power | 120 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 16 GB |
| Memory slots | 8x DIMM |
| ECC | Yes |
| Memory data transfer rate | 4800 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 2 |
| Total SSDs capacity | 4 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 2 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Motherboard chipset | Intel W790 |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,2500,100 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cable lock slot | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover |
| HP Management tools | HP Driver Packs; HP Smart Support |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack |
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168.9 mm |
| Depth | 444.5 mm |
| Height | 386.1 mm |
| Weight | 10.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 572 mm |
| Package height | 563 mm |
| Package weight | 14.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
