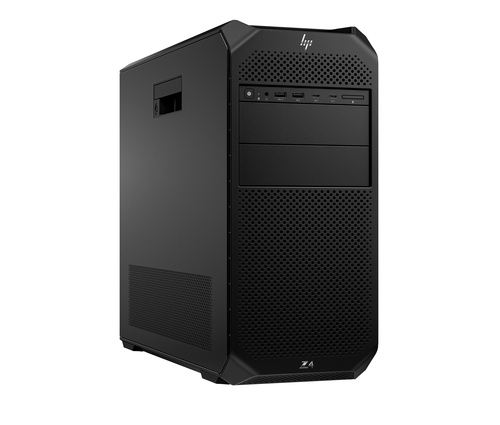

Z4 G5
Model Z4 G5Part no. 55217538EAN 197497492859
102 specifications
- ProcessorIntel Xeon W
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA T400
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel Xeon W
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA T400
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z4 G5
- Part numbers
- 55217538, 5E8Y3EA, 5E8D9EA#UUW, 8B323UP#ABA, 9V450UC#ABA, B46V9UA#ABA +34 more
- EAN / UPC
- 197497492859, 198990264820, 198990264837, 198990264844 +56 more
- Also known as
- HP Z4 G5 Intel Xeon W w7-2495X 32 GB DDR5-SDRAM 1 TB SSD NVIDIA T400 Windows 11 Pro Tower Workstation AI Workstation Black
Specifications
102 specifications in 24 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | w7-2495X |
| Processor cores | 24 |
| Processor threads | 48 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.5 GHz |
| Performance cores | 24 |
| Efficient cores | 0 |
| Processor cache | 45 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 4677 (Socket E) |
| Maximum turbo power | 270 W |
| Processor base power | 225 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA T400 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Motherboard chipset | Intel W790 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1125 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2026 |
| Country of origin | Czech Republic |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack; HP Services Scan |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Intel® Turbo Boost Technology | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 198990264820, 198990264837, 198990264844 |
| HP GTIN (EAN/UPC) with options | (A2N) 198990264820; (ABV) 198990264837; (BH5) 198990264844 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168.9 mm |
| Depth | 444.5 mm |
| Height | 386.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 572 mm |
| Package height | 563 mm |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Low halogen | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | TCO |
| Sustainable technologies and materials | Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion |
| Sustainability compliance | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Carbon emissions, logistics (kg of CO2e) | 5 |
| Carbon emissions, manufacturing (kg of CO2e) | 290 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 309 |
| Total carbon footprint (kg of CO2e) | 610 |
Supplier features
| Specification | Value |
|---|---|
| Manufacturer warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_6303729_en-US-1.pdf |
