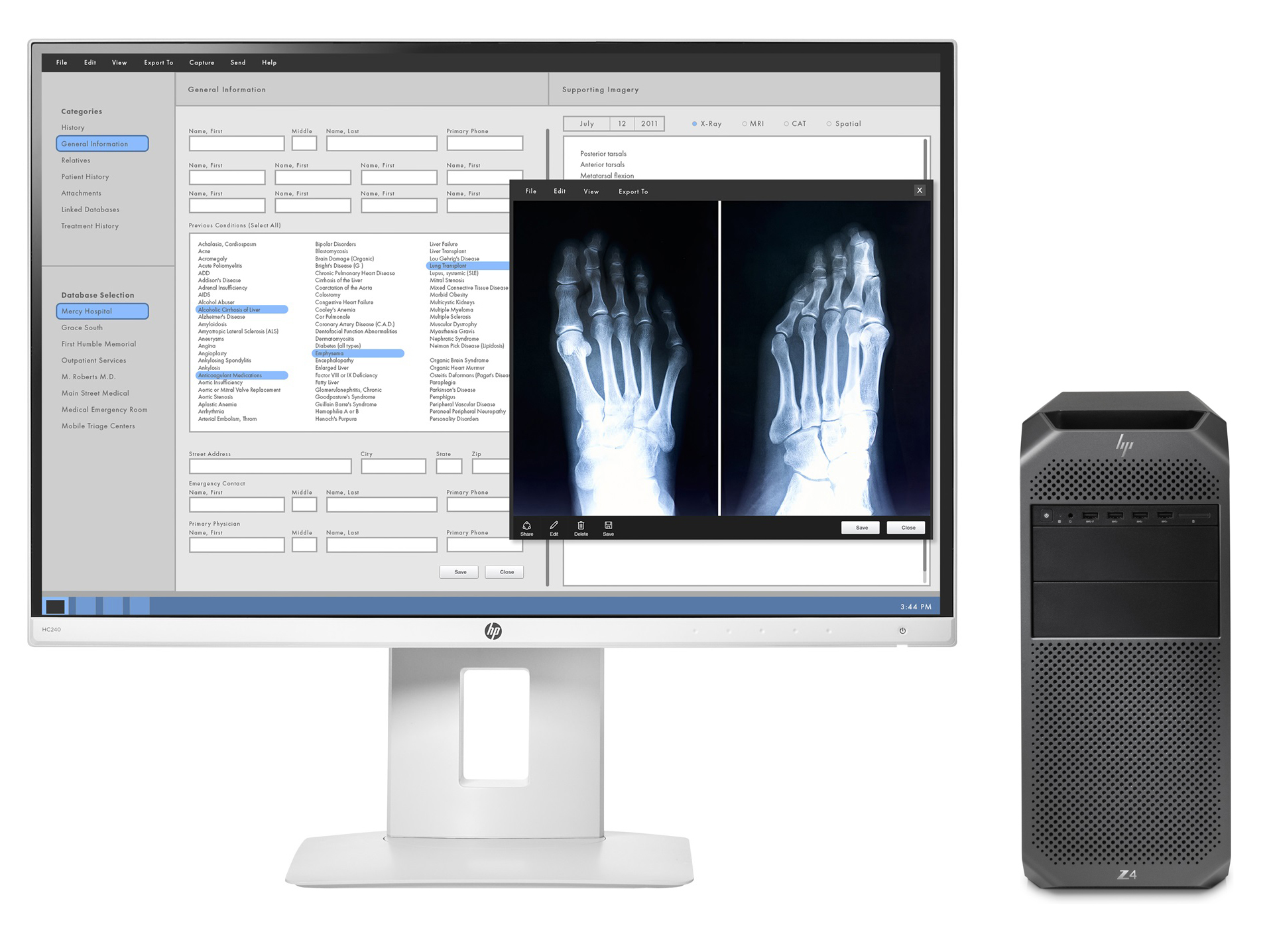

HP Z4 G4 + HC240

Model Z4 G4 + HC240Part no. 3MB66EA#UUG#*KIT*

131 specifications

Display61 cm (24")
Resolution1920 x 1200 pixels
ProcessorIntel® Xeon®
Memory16 GB
Storage1.25 TB
GraphicsNot available

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1200 pixels
Processor: Intel® Xeon®
Memory: 16 GB
Storage: 1.25 TB
Graphics: Not available

Brand: HP
Category: PCs/Workstations
Model: Z4 G4 + HC240
Part number: 3MB66EA#UUG#*KIT*
Also known as: HP Z4 G4 + HC240 Intel® Xeon® W-2125 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Pro Mini Tower Workstation Black

Specifications

131 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	W-2125
Processor cores	4
Processor threads	8
Processor boost frequency	4.5 GHz
Processor frequency	4 GHz
Processor cache	8.25 MB
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Skylake
Thermal Design Power (TDP)	120 W
Tcase	64 °C
Maximum number of PCI Express lanes	48
PCI Express configurations	1x16, 1x4, 1x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2066 (Socket R4)
Stepping	U0
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400,2666 MHz
Memory bandwidth supported by processor (max)	85.3 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2666 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1.25 TB
Optical drive type	DVD-RW
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C422

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Yes
Headphone outputs	0
Line-out	Yes
Line-in	Yes
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Power

Specification	Value
Power supply	750 W

Design

Specification	Value
Chassis type	Mini Tower
Cable lock slot	Yes
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	Yes
Display diagonal	61 cm (24")
Display type	LED
Display resolution	1920 x 1200 pixels
Panel type	IPS
Native aspect ratio	16:10
Contrast ratio (typical)	1000:1
Display brightness	300 cd/m²
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	No
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	126708
Processor code	SR3LM
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek HD ALC221

Weight & dimensions

Specification	Value
Width	169 mm
Depth	445 mm
Height	386 mm
Weight	10.2 kg

Packaging content

Specification	Value
Keyboard included	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
