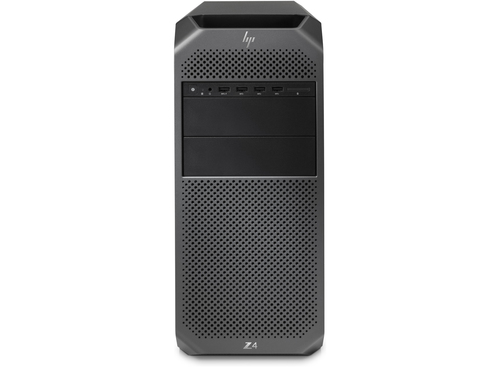

HP Z4 G4 (9LM37EA) + 4TB SATA 7200 (K4T76AA) + NVIDIA Quadro RTX 4000 (5JV89AT) + 16GB (1x16GB) DDR4-2933 ECC (5YZ54AT)

Model Z4 G4 (9LM37EA) + 4TB SATA 7200 (K4T76AA) + NVIDIA Quadro RTX 4000 (5JV89AT) + 16GB (1x16GB) DDR4-2933 ECC (5YZ54AT)Part no. B9LM37EA03

121 specifications

ProcessorIntel Xeon W
Memory32 GB
Storage4.51 TB
GraphicsNVIDIA Quadro RTX 4000
TypeWorkstation
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel Xeon W
Memory: 32 GB
Storage: 4.51 TB
Graphics: NVIDIA Quadro RTX 4000
Type: Workstation
OS: Windows 10 Pro

Brand: HP
Category: PCs/Workstations
Model: Z4 G4 (9LM37EA) + 4TB SATA 7200 (K4T76AA) + NVIDIA Quadro RTX 4000 (5JV89AT) + 16GB (1x16GB) DDR4-2933 ECC (5YZ54AT)
Part number: B9LM37EA03
Also known as: HP Z4 G4 (9LM37EA) + 4TB SATA 7200 (K4T76AA) + NVIDIA Quadro RTX 4000 (5JV89AT) + 16GB (1x16GB) DDR4-2933 ECC (5YZ54AT) Intel Xeon W W-2225 32 GB DDR4-SDRAM 4.5

Specifications

121 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon W
Processor model	W-2225
Processor cores	4
Processor threads	8
Processor boost frequency	4.6 GHz
Processor frequency	4.1 GHz
Processor cache	8.25 MB
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Cascade Lake
Thermal Design Power (TDP)	105 W
Tcase	61 °C
Maximum number of PCI Express lanes	48
PCI Express configurations	1x4, 1x8, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2066 (Socket R4)
Maximum internal memory supported by processor	1 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz
Memory bandwidth supported by processor (max)	93.85 GB/s

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	8x DIMM
Memory clock speed	2933 MHz
ECC	Yes

Storage

Specification	Value
Total storage capacity	4.51 TB
Optical drive type	DVD-RW
Storage media	HDD+SSD
Total HDDs capacity	4 TB
Number of HDDs installed	1
HDD capacity	4 TB
HDD interface	SATA
HDD speed	7200 RPM
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	SATA
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA Quadro RTX 4000
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel® C422

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	12
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Power

Specification	Value
Power supply	1000 W

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Flex Memory Access	No
Intel Software Guard Extensions (Intel SGX)	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	198610
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	SSE4.2, AVX, AVX 2.0, AVX-512
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes

Audio

Specification	Value
Audio chip	Realtek HD ALC221

Weight & dimensions

Specification	Value
Width	169 mm
Depth	445 mm
Height	386 mm
Weight	10.2 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Logistics data

Specification	Value
Harmonized System (HS) code	84715000
