HP Z240 Tower + Z23n G2

Model Z240 Tower + Z23n G2Part no. Y3Y83EA#KIT

144 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: HP
Category: PCs/Workstations
Model: Z240 Tower + Z23n G2
Part numbers: Y3Y83EA#KIT, Y3Y83EA+1JS06A4
Also known as: HP Z240 Tower + Z23n G2 Intel® Core™ i7 i7-7700K 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro PC Black

Specifications

144 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700K
Processor cores	4
Processor threads	8
Processor boost frequency	4.5 GHz
Processor frequency	4.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-7700 Desktop series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	91 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD-ROM
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® C236

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	400 W

Design

Specification	Value
Chassis type	Tower
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

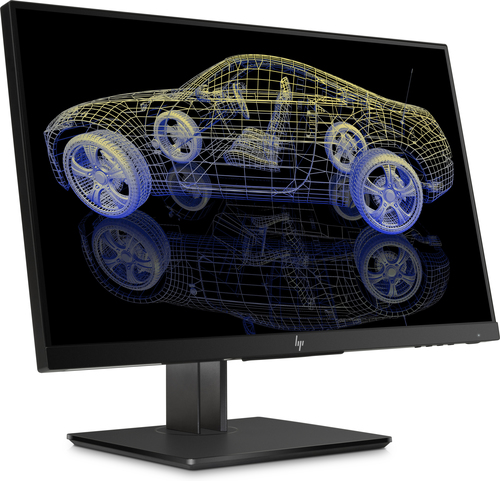

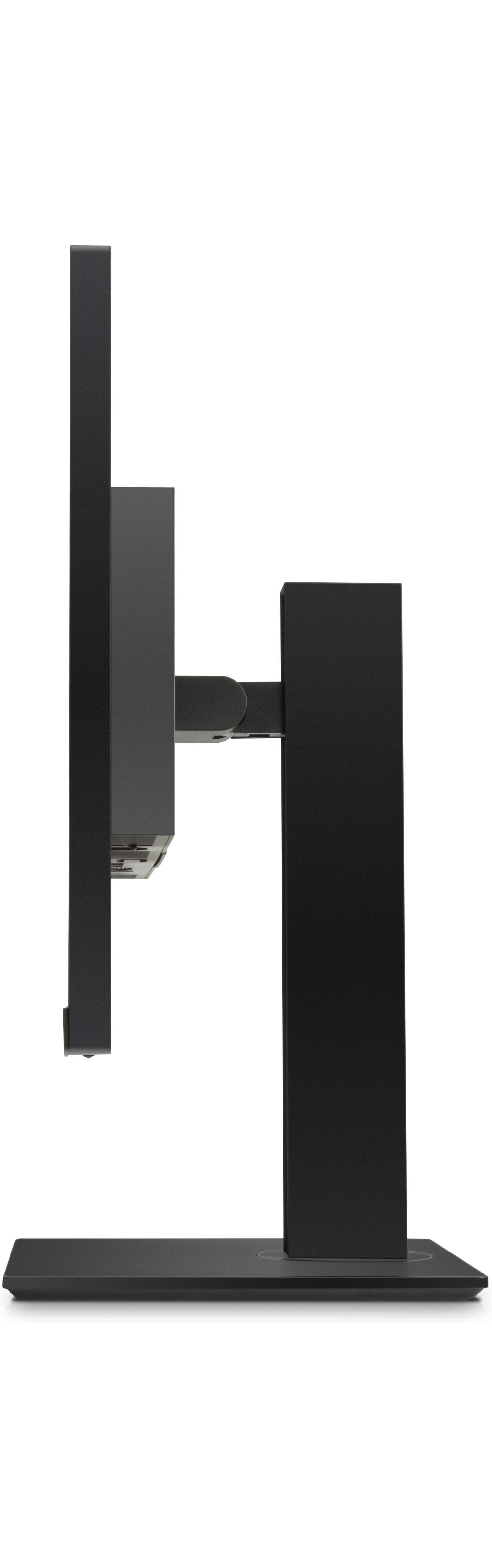

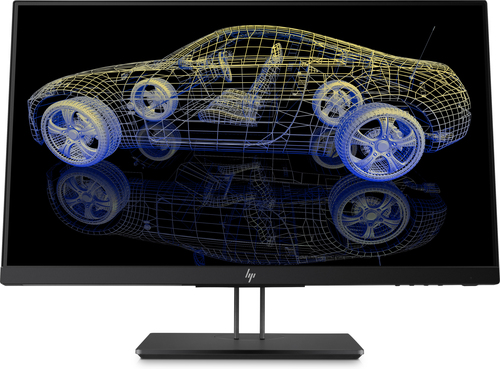

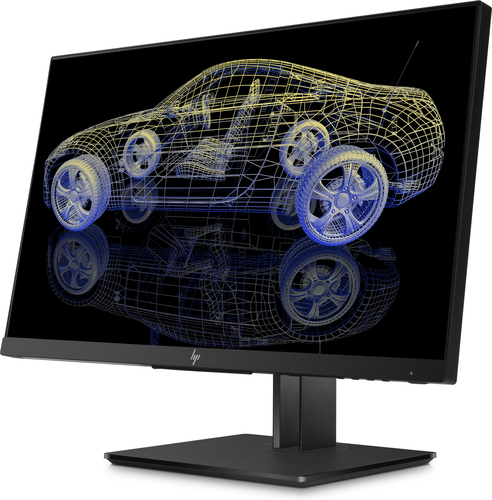

Display

Specification	Value
Display included	Yes
Display diagonal	58.4 cm (23")
Display type	LED
Full HD	Yes
Display resolution	1920 x 1080 pixels
Panel type	IPS
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97129
Processor code	SR338
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek HD ALC221-VB

Weight & dimensions

Specification	Value
Width	170 mm
Depth	442 mm
Height	399 mm
Weight	8.6 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
