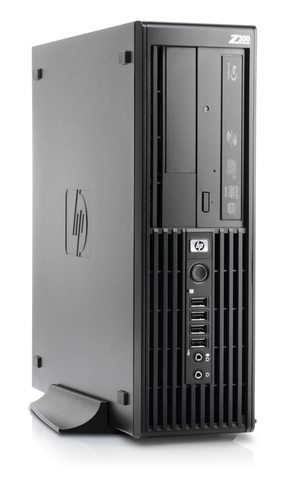

Z200 Small Form Factor Workstation

Model Z200 Small Form Factor WorkstationPart no. SK001UCEAN 885631272466

131 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z200 Small Form Factor Workstation
Part numbers: SK001UC, KK627EA, KK628EA, KK626EA, KK655ET, KK698EA#ABB +34 more
EAN / UPC: 885631272466, 885631271926, 885631271933, 885631271940 +49 more
Also known as: HP Z200 Small Form Factor Workstation Intel® Core™ i5 i5-650 3 GB DDR3-SDRAM 320 GB HDD Windows XP Professional SFF

131 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	24
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD Super Multi
Storage media	HDD
Total HDDs capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Maximum HDD capacity	160 GB
Minimum storage drive space	160 GB
Storage drive controller	Integrated SATA 3.0 Gb/s with RAID 0, 1 supported. Requires identical hard drives (speeds, capacity, interface).
Storage drive type	320 GB 7200 rpm SATA NCQ
HDD controller type	SATA (10000 rpm) SATA SLC Solid State Drive SATA (7200 rpm)

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Graphics card	HD Graphics
Video card note	All cards are PCIe.

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 3450

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Serial ports quantity	0
Parallel ports quantity	0
DVI-I ports quantity	1
I/O ports	4 internal USB 2.0 ports available via two 9-port headers. 1 VGA and 1 DisplayPort output from Intel HD graphics only available on dual-core processors. Audio ports can be retasked to function as line in, line out, microphone or headphone. 10 USB 2.0; 1 IEEE 1394; 1 IEEE 1394 (optional); 1 microphon

Specification	Value
Expansion slots	1 PCIe Gen2 x16 mechanical (x16 electrical); 1 PCIe Gen1 x16 mechanical (x4 electrical); 1 PCIe Gen1 x1 mechanical (x1 electrical); 1 PCI; 1 22-in-1 Media Card Reader (optional) All slots are low-profile. PCIe Gen2 slot dedicated for graphics.

Specification	Value
Power requirements	240 W 89% efficient, wide-ranging, Active Power Factor Correction

Specification	Value
Chassis type	SFF
Country of origin	China

Specification	Value
Operating system installed	Windows XP Professional
Operating system note	HP Installer Kit for Linux includes drivers for both 32-bit & 64-bit version of Red Hat Enterprise Linux WS 5, and 64-bit Novell SLED 11

Specification	Value
Display included	No
Display	HP LP1965 48,3 cm (19") LCD Monitor, HP LP2065 50,8 cm (20") LCD Monitor, HP LP2275w 55,9 cm (22") Widescreen LCD Monitor, HP LP2475w 61 cm (24") Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display 61 cm (24") diagonal widescreen, HP LP3065 76,2 cm (30") Widescreen LCD Monitor, HP ZR

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	High Definition Audio
Audio included	Integrated High Definition Realtek ALC262 audio; optional Creative X-Fi Titanium PCIe audio card; optional HP Thin USB Powered Speakers

Specification	Value
Width	338 mm
Depth	381 mm
Height	100 mm
Weight	7.6 kg
Size (imperial)	33.8 cm (13.3")
Dimension note (imperial)	Standard desktop orientation
Dimension note (metric)	Standard desktop orientation
Weight (imperial)	Starting at 16.72 lb
