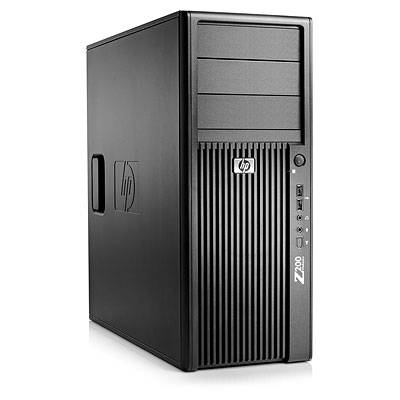

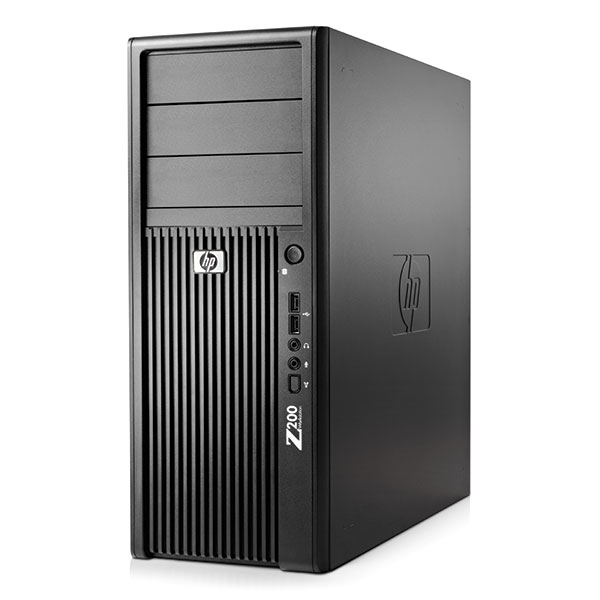

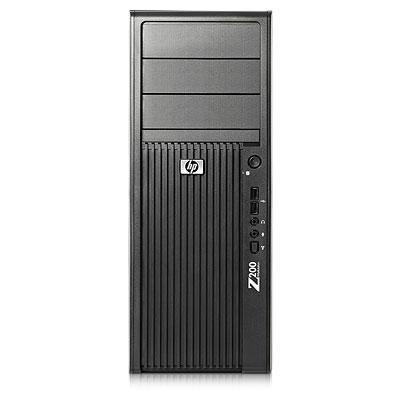

Z200 Base Model Workstation

Model Z200 Base Model WorkstationPart no. VA206AVEAN 884962123225

112 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z200 Base Model Workstation
Part numbers: VA206AV, VA206AV#ABH
EAN / UPC: 884962123225
Also known as: HP Z200 Base Model Workstation Intel® Core™ i3 i3-530 4 GB DDR3-SDRAM Windows 7 Professional Minitower Black

112 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-530
Processor cores	2
Processor threads	4
Processor frequency	2.93 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-500 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	22
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 3450

Specification	Value
Networking features	Fast Ethernet (10/100)

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Specification	Value
Power supply	320 W

Specification	Value
Operating system installed	Windows 7 Professional

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	46472
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
