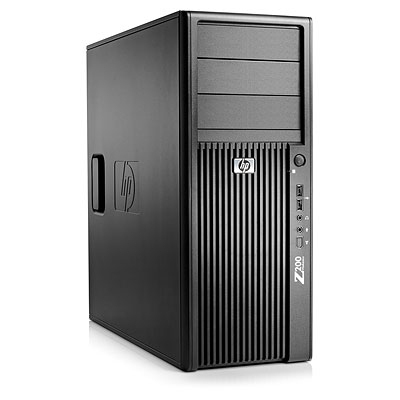

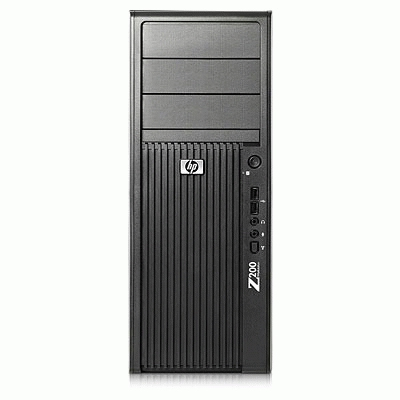

HP Z200 Intel® Xeon® 3000 Sequence X3450

4 GB DDR3-SDRAM Windows XP Professional Minitower Workstation

Model Z200Part no. KK664ETEAN 885631773598

113 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z200
Part numbers: KK664ET, KK625ET#UUZ#*B4, KK625ET#UUZ#*B3, KK625ET#UUZ#*B5, KK625ET#UUZ#*B6, KK707EA +34 more
EAN / UPC: 885631773598, 885631226483, 885631226490, 885631226506 +56 more
Also known as: HP Z200 Intel® Xeon® 3000 Sequence X3450 4 GB DDR3-SDRAM Windows XP Professional Minitower Workstation

113 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	X3450
Processor cores	4
Processor threads	8
Processor boost frequency	3.2 GHz
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 3400 Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 4x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	20
Maximum number of SMP processors	1
Stepping	B1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	Yes

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 3450

Specification	Value
Power supply	320 W

Specification	Value
Operating system installed	Windows XP Professional
Compatible operating systems	Windows 7 Professional 32-bit Windows 7 Professional 64-bit Windows XP Professional 32-bit Windows XP Professional 64-bit Novell Suse SLED 11 Linux Red Hat Enterprise Linux WS 5

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	42929
Processor code	SLBLD
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	High Definition Audio
