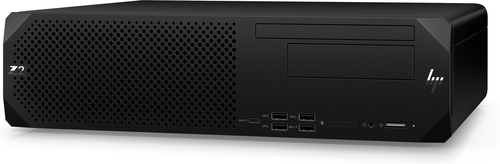

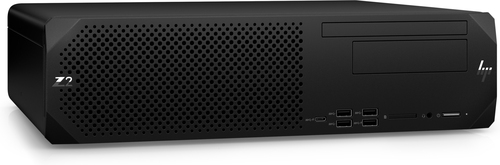

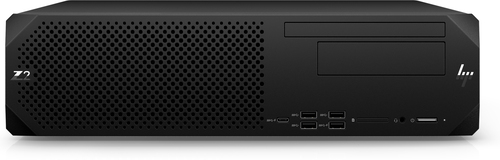

Z2 SFF G9
Model Z2 SFF G9Part no. 5F0H8EA#ABBEAN 196548739561
102 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z2 SFF G9
- Part numbers
- 5F0H8EA#ABB, 5F0H8EA#ABH, 5F0N6EA#ABH, 5F0N7EA#ABB, 5F0N8EA#ABH, 5F0N6EA#ABB +22 more
- EAN / UPC
- 196548739561, 196548740208, 196548740215, 196548740222 +56 more
- Also known as
- HP Z2 SFF G9 Intel® Core™ i7 i7-12700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Workstation Black
Specifications
102 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.9 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 25 MB |
| Processor cache type | L3 |
| Bus type | DMI4 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | No |
| Non-ECC | Yes |
| Number of free internal memory expansion slots | 1 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |

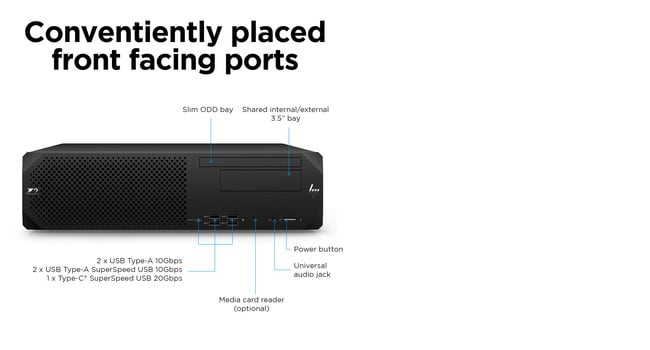

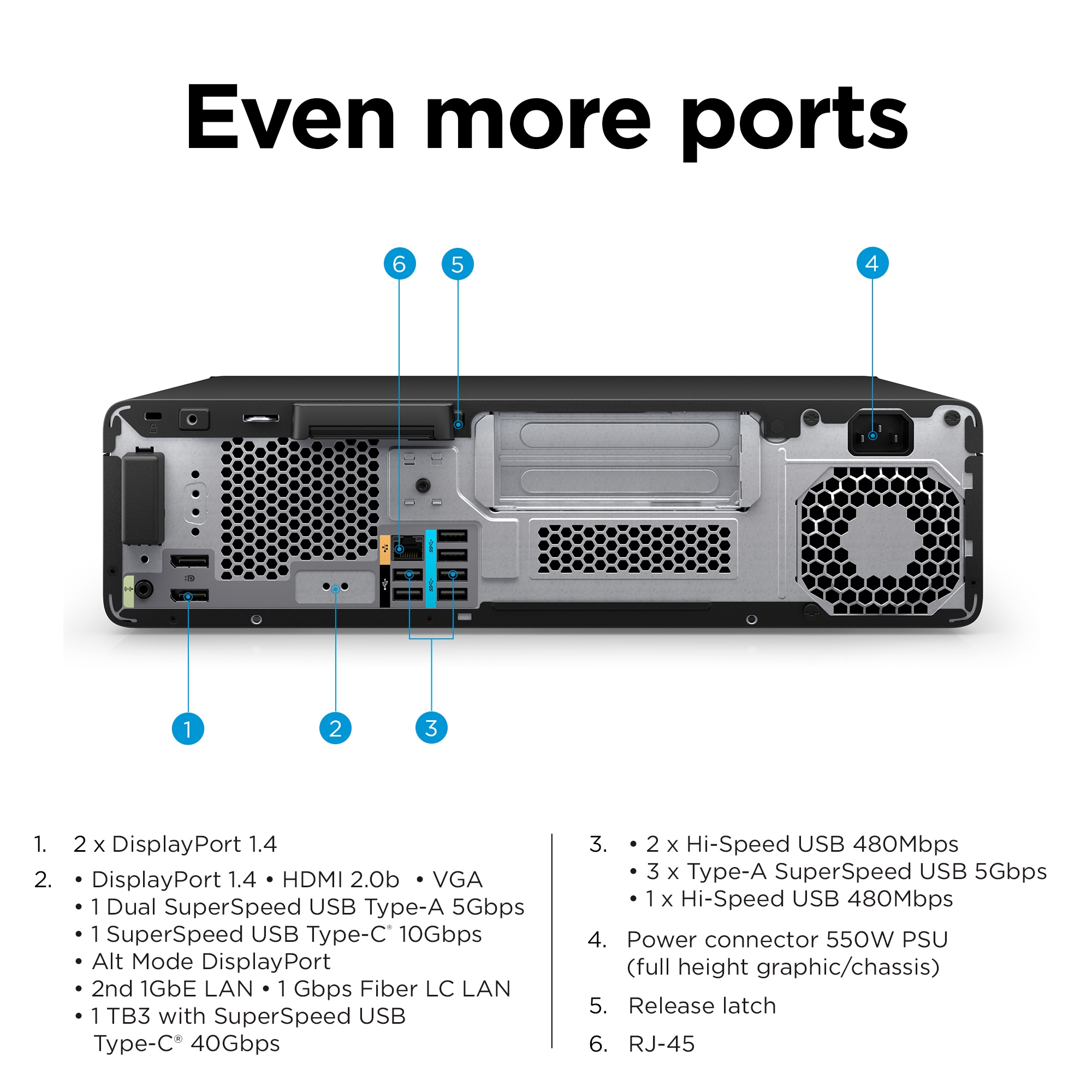

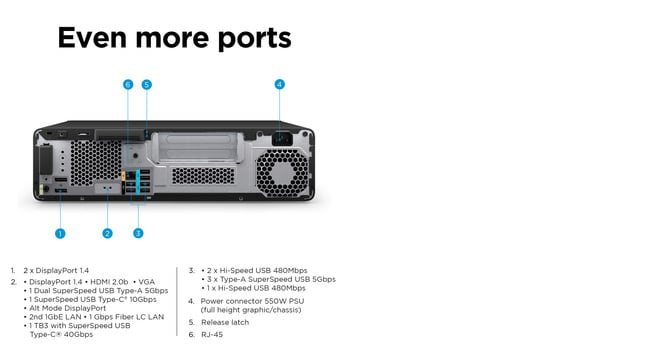

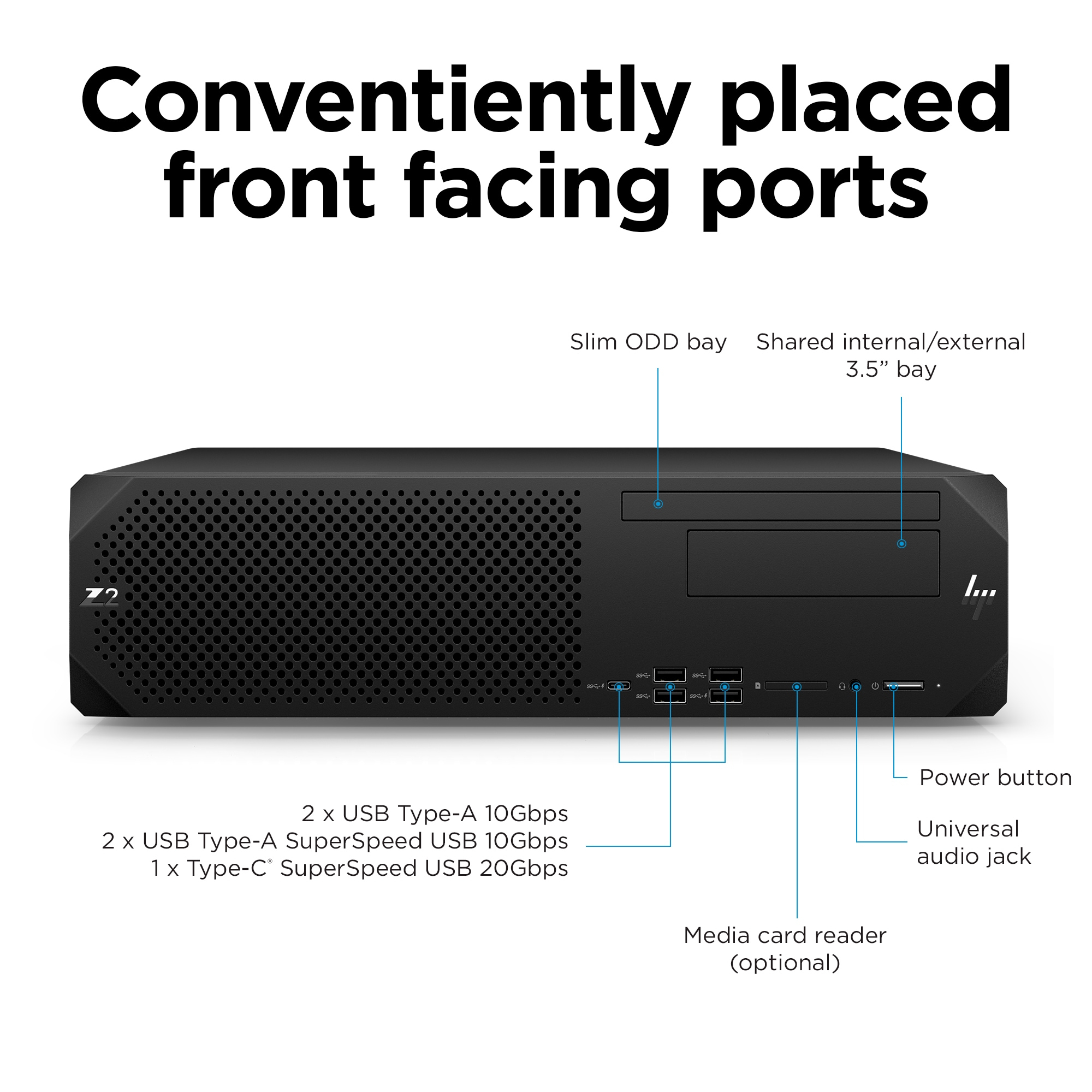

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Number of 2.5" bays | 1 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Management tools | HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 196548740307 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3252 |
| Number of speakers | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 384 mm |
| Depth | 308 mm |
| Height | 100 mm |
| Weight | 5.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 384 mm |
| Package height | 308 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus® Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosu |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
Keyboard
| Specification | Value |
|---|---|
| Keyboard type | USB |
