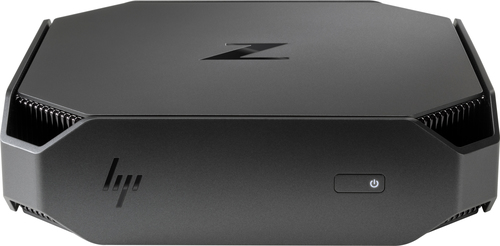

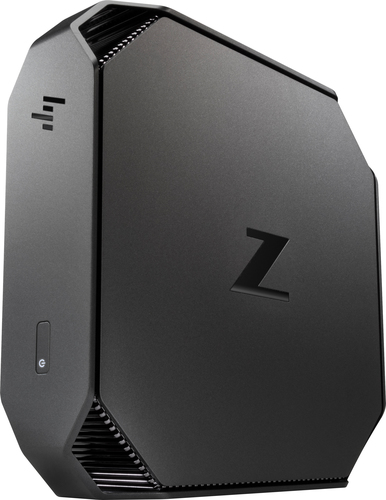

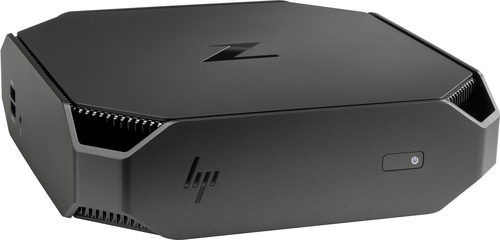

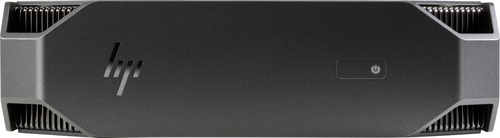

Z2 G4 (6TX18EA) + Z27n G2 (1JS10AT)

Model Z2 G4 (6TX18EA) + Z27n G2 (1JS10AT)Part no. B6TX18EA02

121 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z2 G4 (6TX18EA) + Z27n G2 (1JS10AT)
Part number: B6TX18EA02
Also known as: HP Z2 G4 (6TX18EA) + Z27n G2 (1JS10AT) Intel® Core™ i7 i7-9700 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P1000 Windows 10 Pro Mini PC Workstation Black

121 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	9th gen Intel® Core™ i7
Processor model	i7-9700
Processor cores	8
Processor threads	8
Processor boost frequency	4.7 GHz
Processor frequency	3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® P1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E98
On-board graphics card OpenGL version	4.5

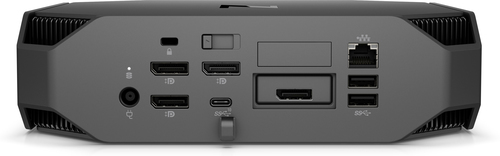

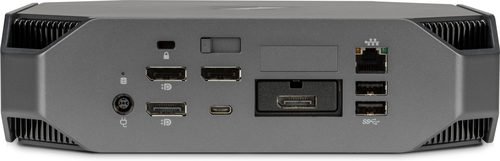

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Thunderbolt 3 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	No
DVI port	No

Specification	Value
Power supply	230 W

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	191792
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
