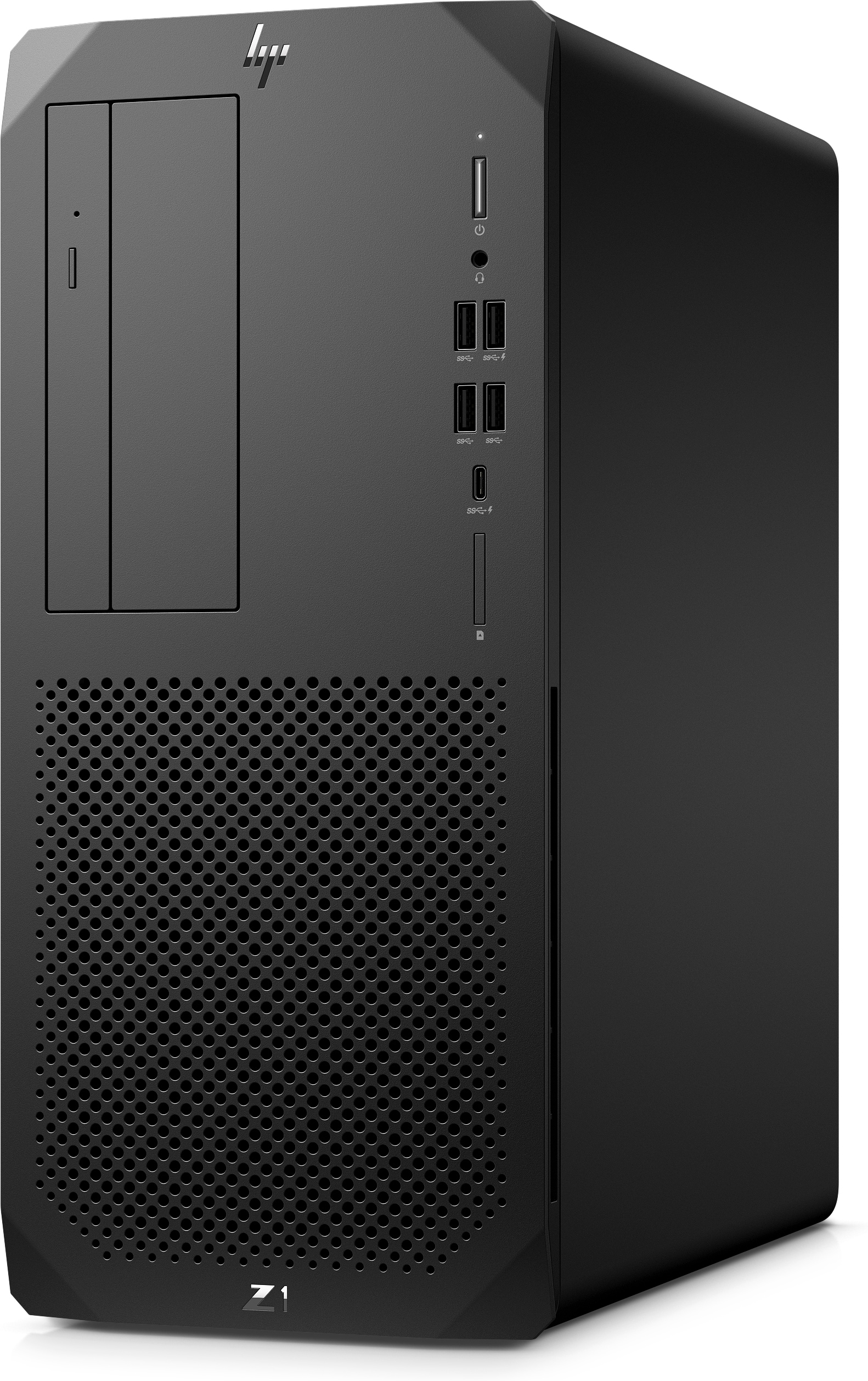

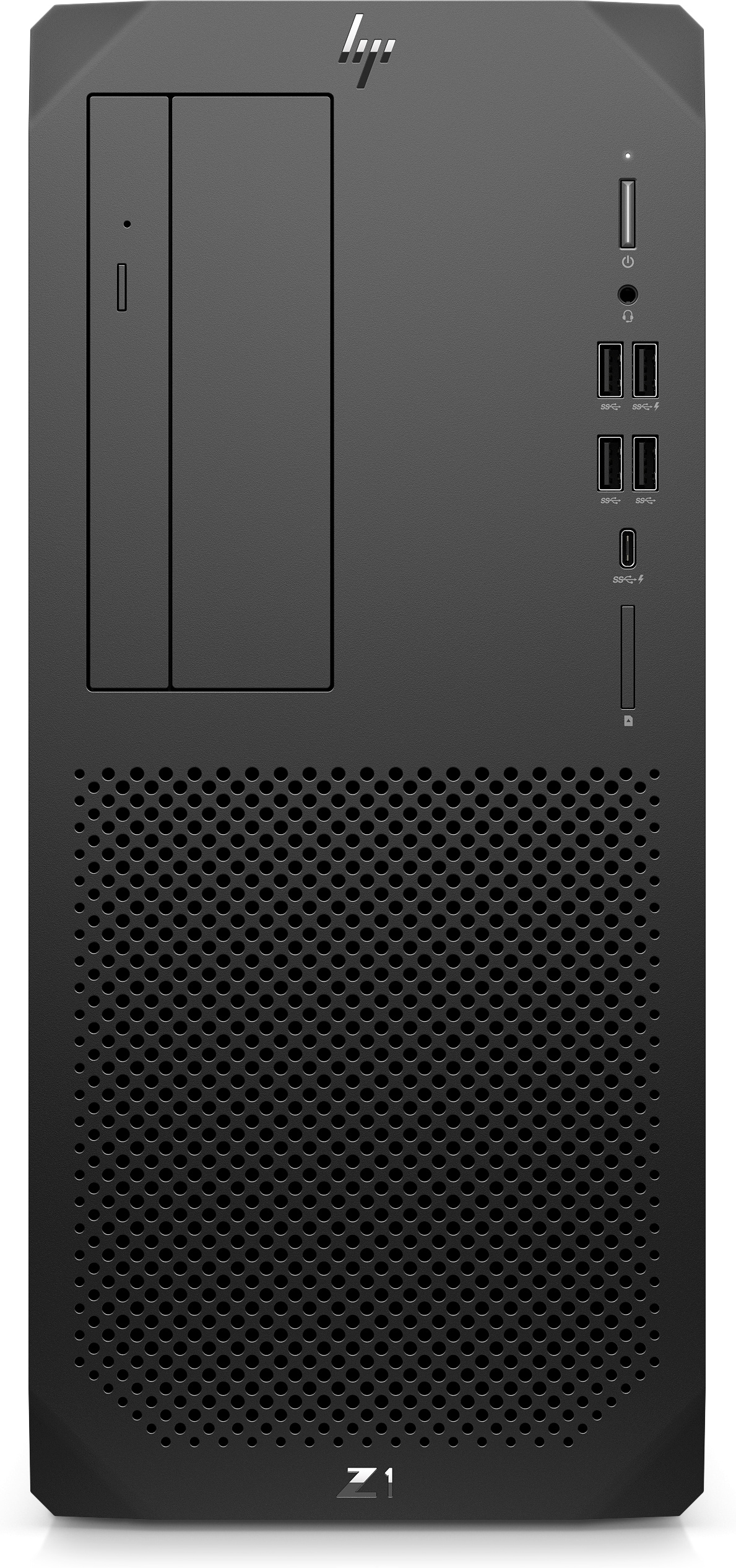

Z1 G6
Model Z1 G6Part no. 12M29EA#ABBEAN 195161076152
83 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 2060 SUPER
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 2060 SUPER
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z1 G6
- Part numbers
- 12M29EA#ABB, 12M28EA#UUW, 12M37EA, 12M31EA, 12M30EA, 12M31EA#ABH +34 more
- EAN / UPC
- 195161076152, 195161077470, 195161077487, 195161077494 +56 more
- Also known as
- HP Z1 G6 Intel® Core™ i7 i7-10700 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 2060 SUPER Windows 10 Pro Tower Workstation Black
Specifications
83 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10700 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 16 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 2060 SUPER |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Motherboard chipset | Intel Q470 |
| Password protection | Yes |
| Password protection type | Power on |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | No |
| DVI port | No |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP JumpStart | Yes |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP Sure Sense; HP Sure Start Gen6; HP Sure Run Gen3; HP Sure Recover Gen3; HP DriveLock and Automatic DriveLock; HP BIOSphere Gen6; HP Client Security Manager Gen6 |
| HP Management tools | HP Client Catalog; HP Cloud Recovery; HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager; HP Image Assistant Gen5; HP BIOS Configuration Utility |
| HP Software provided | HP Noise Cancellation Software; HP Privacy Settings; HP Desktop Support Utilities |
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Conexant CX20632 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 370 mm |
| Depth | 308 mm |
| Height | 168 mm |
| Weight | 9.86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 299 mm |
| Package depth | 478 mm |
| Package height | 517 mm |
| Package weight | 11.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainable technologies and materials | Low halogen |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
