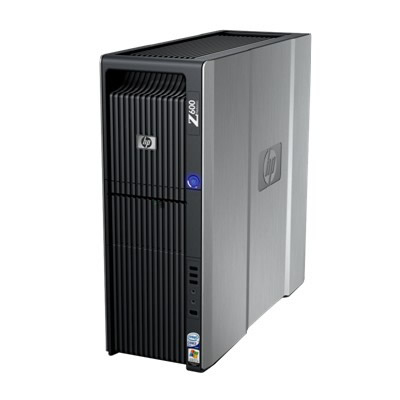

HP YG699UC workstation Intel® Xeon® 5000 Sequence X5550

12 GB DDR3-SDRAM Windows Vista Business Edition Minitower

Model YG699UCEAN 884962470367

123 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory12 GB
Storage500 GB
TypeWorkstation
OSWindows Vista Business Edition
Weight14.4 kg

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 12 GB
Storage: 500 GB
Type: Workstation
OS: Windows Vista Business Edition
Weight: 14.4 kg

Brand: HP
Category: PCs/Workstations
Model: YG699UC
Part number: YG699UC
EAN / UPC: 884962470367, 885631980811
Also known as: HP YG699UC workstation Intel® Xeon® 5000 Sequence X5550 12 GB DDR3-SDRAM Windows Vista Business Edition Minitower

Specifications

123 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	X5550
Processor cores	4
Processor threads	8
Processor boost frequency	3.06 GHz
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	6.4 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5500 Series
Processor codename	Nehalem EP
Processor system type	DP
Thermal Design Power (TDP)	95 W
Tcase	75 °C
Number of QPI links	2
Number of processors installed	2
Processor socket	Socket B (LGA 1366)
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
CPU multiplier (bus/core ratio)	20
Stepping	D0
Maximum internal memory supported by processor	144 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	12 GB
Maximum internal memory	24 GB
Internal memory type	DDR3-SDRAM
Memory slots	6x DIMM
ECC	Yes
Maximum internal memory	24576 MB
Memory channels	Triple-channel

Storage

Specification	Value
Optical drive type	DVD Super Multi
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Maximum graphics card memory	1.024 GB
Graphics card	Quadro FX 3800
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 5520
Password protection type	BIOS

Optical drive

Specification	Value
LightScribe	Yes
BD interface type	SATA

Network

Specification	Value
Internal modem	No
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	9
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x16 slots	2

Power

Specification	Value
Power supply type	AC
Power supply	650 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Minitower
Number of 5.25" bays	2
External drive bays	2 x 5.25"
Internal drive bays	2 x 3.5"
Country of origin	China

Software

Specification	Value
Operating system installed	Windows Vista Business Edition
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	40 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	37106
Processor code	SLBF5
Processor package size	42.5 x 45 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD Realtek ALC262

Weight & dimensions

Specification	Value
Width	165 mm
Depth	440 mm
Height	444 mm
Weight	14.4 kg
Dimensions (WxDxH)	165 x 440 x 444 mm

Packaging content

Specification	Value
Mouse included	Yes
Numeric keypad	Yes

Keyboard

Specification	Value
Pointing device	USB optical scroll mouse
Keyboard type	PS/2
