-RW WVST Bus Workstation

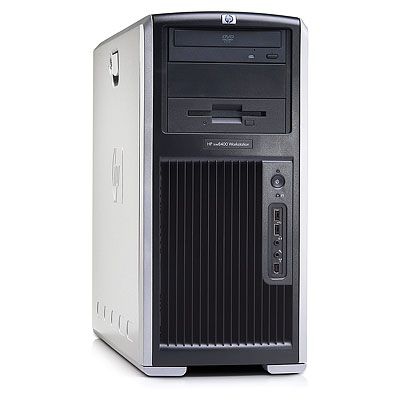

Model xw8400 Intel® Xeon® 2.66GHz 2GB/250GB DVD+/-RW WVST Bus WorkstationPart no. PW430EA#ABH

105 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory2 GB
Storage250 GB
TypeWorkstation
Weight28 kg
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 2 GB
Storage: 250 GB
Type: Workstation
Weight: 28 kg
Processor manufacturer: Intel

Brand: HP
Category: PCs/Workstations
Model: xw8400 Intel® Xeon® 2.66GHz 2GB/250GB DVD+/-RW WVST Bus Workstation
Part number: PW430EA#ABH
Also known as: HP xw8400 Intel® Xeon® 2.66GHz 2GB/250GB DVD+/-RW WVST Bus Workstation Intel® Xeon® 5000 Sequence X5355 DDR2-SDRAM Minitower

Specifications

105 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	X5355
Processor cores	4
Processor threads	4
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	Yes
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5300 Series
Processor codename	Clovertown
Thermal Design Power (TDP)	120 W
Tcase	70 °C
Number of processors installed	1
Processor socket	LGA 771 (Socket J)
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	32 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
ECC	Yes
Memory upgrade	32 GB

Storage

Specification	Value
HDD capacity	250 GB
HDD interface	SATA
HDD speed	7200 RPM
Storage drive controller	SATA 3Gb/s
Disk subsystem controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0,1,5, 10) capability, integrated 4 channel SAS controller with RAID (0 or 1) capability
Diskette drive	Yes
Storage drive type	250 GB

Graphics

Specification	Value
Video card features	No Integrated Graphics Kit

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 5000X

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	7
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	1
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Front: Headphone, microphone, and 2 USB 2.0, 1 IEEE 1394; Rear: 5 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45, 1 audio in, 1 audio out, 1 IEEE 1394; Internal: 1 USB 2.0

Expansion slots

Specification	Value
Expansion slots	7 slots: 1 PCI Express (x16) Graphics slot, 1 PCI Express (x16 mechanically, x4 electrically), 1 PCI Express (x8 mechanically, x4 electrically), 1 133 MHz PCI-X slot, 2 100 MHz PCI-X slots, and 1 legacy PCI slot

Power

Specification	Value
Power requirements	800 watts
Power supply	800 W

Design

Specification	Value
Chassis type	Minitower
Country of origin	China

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	28035
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio
Audio included	Integrated High Definition audio with Jack Retasking technology, optional PCI Sound Blaster X-Fi Xtreme Music

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Relative humidity	10 - 85%
Non-operating altitude	10000
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width	210 mm
Depth	525 mm
Height	454 mm
Weight	28 kg

Keyboard

Specification	Value
Pointing device	HP optical mouse
Keyboard type	HP PS/2 Standard Keyboard

Features

Specification	Value
Security management description	Standard, side cover key lock, USB ports can be deactivated, padlock loop, Kensington lock provision, universal chassis clamp lock, chassis intrusion sensor

Other features

Specification	Value
Drive bays	3 external 5.25" bays 5 internal 3.5" bays
