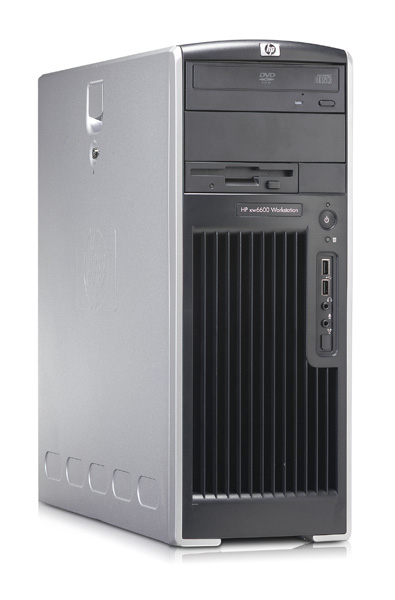

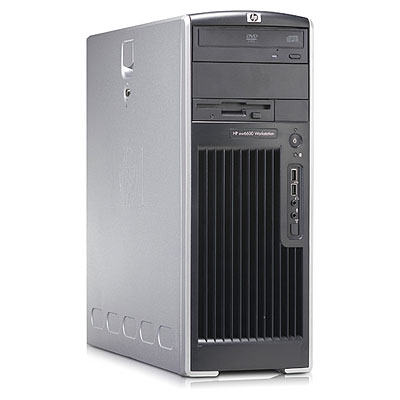

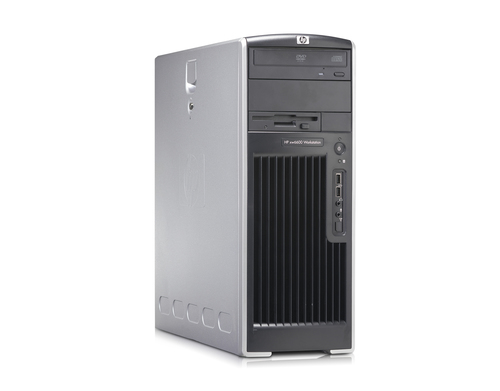

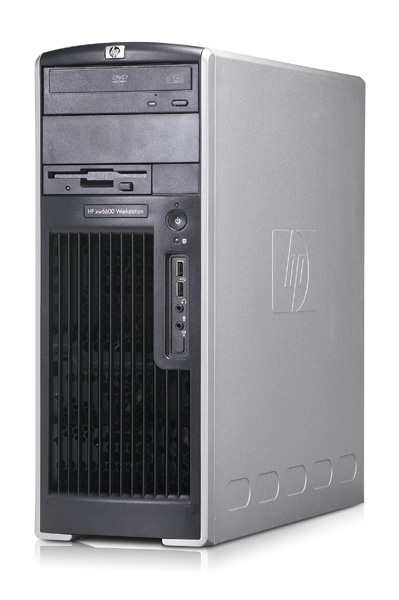

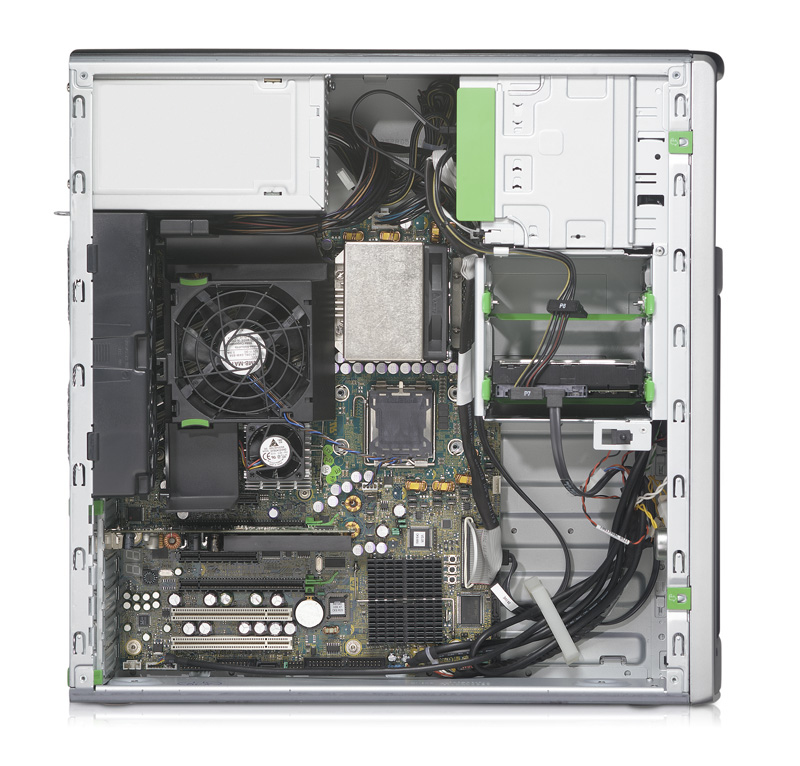

HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation
Model xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus WorkstationPart no. PW454EAEAN 884420089438
106 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage250 GB
- TypeWorkstation
- Weight18.1 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 250 GB
- Type
- Workstation
- Weight
- 18.1 kg
- Processor manufacturer
- Intel
- Brand
- HP
- Category
- PCs/Workstations
- Model
- xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation
- Part number
- PW454EA
- EAN / UPC
- 884420089438, 883585723737, 883585723744, 883585723768 +6 more
- Also known as
- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation Intel® Xeon® 5000 Sequence E5430 DDR2-SDRAM Mini Tower
Specifications
106 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5430 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.66 GHz |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | Yes |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5400 Series |
| Processor codename | Harpertown |
| Processor system type | DP |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 67 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 771 (Socket J) |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| CPU multiplier (bus/core ratio) | 8 |
| Stepping | E0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory clock speed | 667 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Storage drive controller | SATA 3GB/s NCQ |
| Disk subsystem controller | Integrated SATA 3 Gb/s controller with RAID (0, 1,5) capability |
| Diskette drive | No |
| Storage drive type | 250 GB |
Graphics
| Specification | Value |
|---|---|
| Video card features | No |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 5400 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |

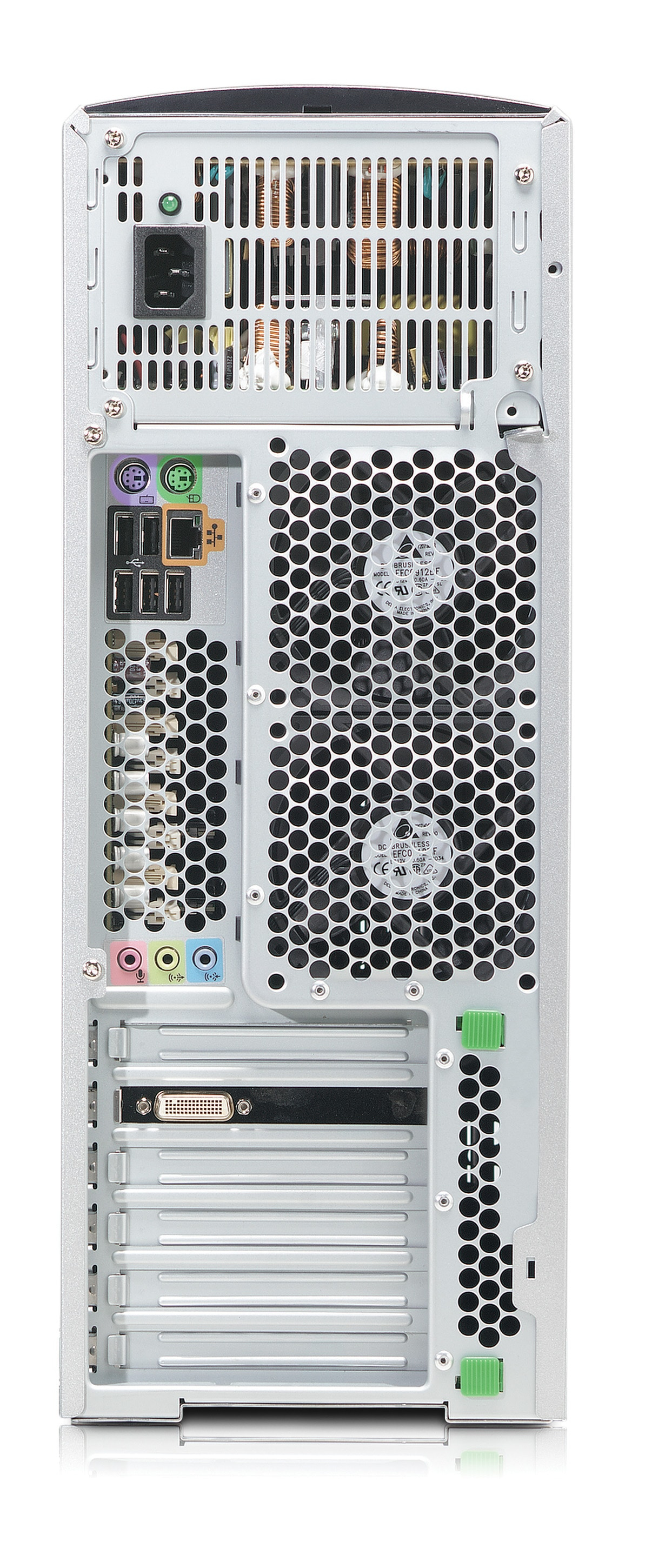

| I/O ports | Front: headphone, microphone, 2 USB 2.0 and 1 optional IEEE 1394A; Rear: 5 USB 2.0, 1 optional serial port, 2 PS/2 keyboard and mouse, 1 RJ-45 to integrated Gigabit LAN, audio In, audio Out, microphone; 1 USB 2.0 (internal) |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 6 full length slots: 2 PCI Express (x16) Gen2 Graphics slots, 2 PCI Express (x8 mechanically, x4 electrically) slots, 2 legacy PCI slots |
Power
| Specification | Value |
|---|---|
| Power requirements | 650 watts wide-ranging, active Power Factor Correction, 80 Plus Efficient |
| Power supply | 650 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display included | No |
| Display | HP LP3065 30in Flat Panel Monitor, HP LP2465 24in Flat Panel Monitor, HP LP2065 20.1in Flat Panel Monitor, HP LP1965 19in Flat Panel Monitor (all sold separately) |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33081 |
| Processor code | SLBBK |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Audio included | High Definition Integrated Realtek ALC262 Audio. Optional Sound Blaster X-Fi XtremeGamer Audio Card |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 8 - 90% |
| Relative humidity | 8 - 85% |
| Non-operating altitude | 9100 |
| Non-operating relative humidity (non-condensing) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 440 mm |
| Height | 441 mm |
| Weight | 18.1 kg |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP USB Optical Scroll Mouse |
| Keyboard type | HP Standard (USB, PS/2) |
Other features
| Specification | Value |
|---|---|
| Drive bays | 2 external 5.25" bays and 1 external 3.5" bay for optional floppy drive 2 internal 3.5” bays or 3 internal 2.5" bays |
What people say
Reviews & ratings
HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation
No reviews yet
Be the first to tell others how HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation
All pcs/workstations comparisons- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsHP xw8600 Intel® Xeon® Quad Core 5450 3.00GHz 2GB/500GB No Graphics DVD+/-RW WVST Bus WorkstationCompare specs

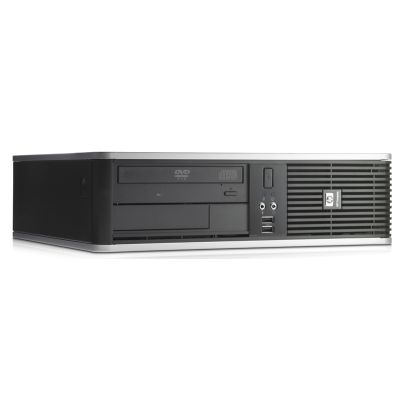

- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsHP dc7800 SFFCompare specs
- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsHP xw6600 Intel® Xeon® Quad Core 5410 2.33GHz 2GB/160GB No Graphics DVD+/-RW WVST Bus WorkstationCompare specs
- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsHP Pavilion Slimline s3360.nl-p Desktop PC BundleCompare specs

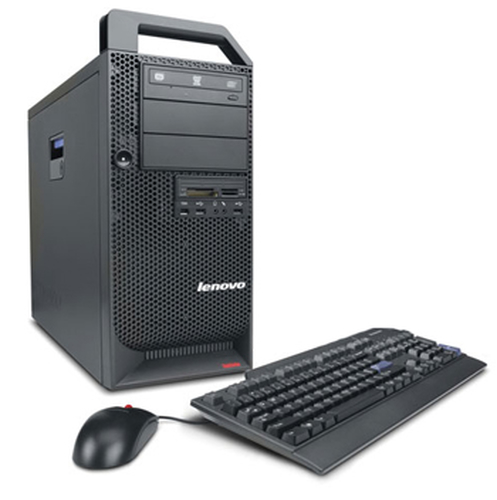

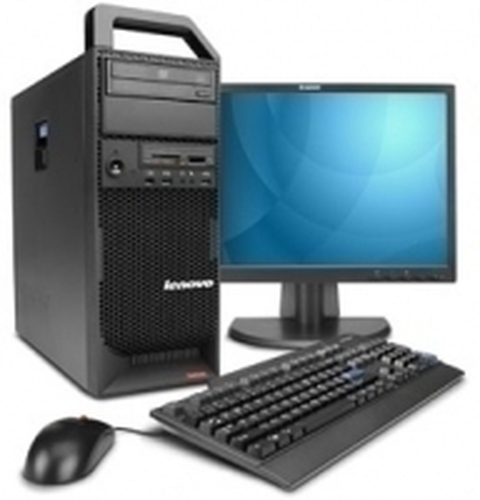

- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsLenovo ThinkStation S10 Tower, NLCompare specs
- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsLenovo ThinkStation S10Compare specs

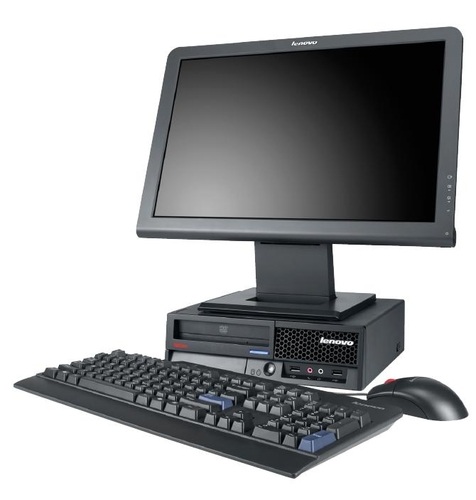

- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsLenovo ThinkCentre A61e + 19" TFT + 1GBCompare specs

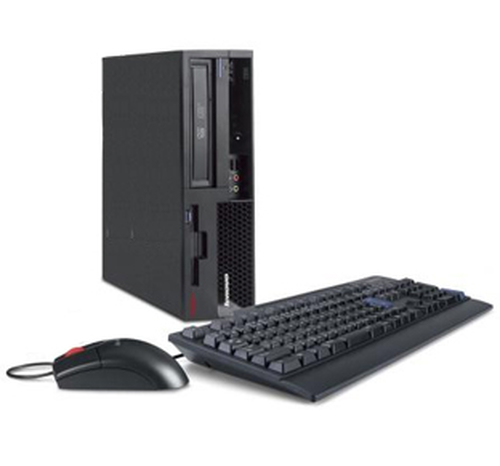

- HP xw6600 Intel® Xeon® Quad Core 5430 2.66GHz 2GB/250GB No Graphics DVD+/-RW WVST Bus Workstation vsLenovo ThinkCentre M57 Small Desktop (9181-A1G), NLCompare specs
